Air Switches & Components
Complete Your Air-Wave or Pneumatic Sensing Edge System
Air switches complete an Air-Wave or pneumatic sensing edge or treadle system. These systems operate by detecting pressure—when the edge, air hose, or treadle is compressed, a wave of air activates the switch, which then signals motor controls to stop and/or reverse operation.
We offer a full selection of air switches, hoses, and kits to support both new installations and on-the-job retrofits.
Note: Air-Wave and pneumatic are non-monitored configurations. In the U.S. and Canada, air-activated sensing edges are ideal for:
- Pre-2010 commercial door operators
- Pre-2016 gate operators
- Use as a secondary entrapment protection device
Learn more: How Sensing Edges Work
Air-Wave Switch
AW10
Use
Air-Wave configured sensing edges and treadles
Description
Switch; no enclosure

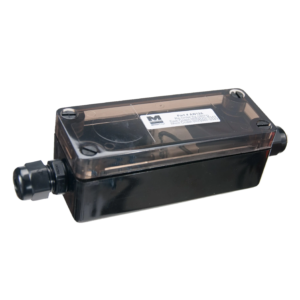

Air-Wave Switch
AW12A
Use
Air-Wave configured sensing edges and treadles
Description
Switch housed in a NEMA 4 polycarbonate enclosure

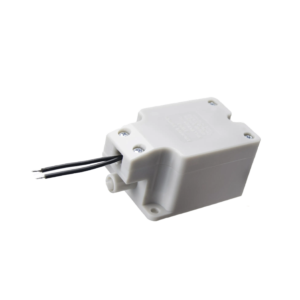

Air-Wave Switch
AW14
Use
Air-Wave configured sensing edges and treadles
Description
Switch housed in an ABS enclosure

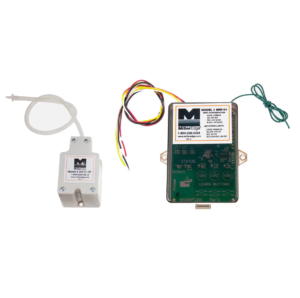

Wireless Air-Wave System
AW14-RF-K10
Use
Air-Wave configured sensing edges and treadles
Description
Transmitter/switch and receiver housed in ABS enclosures

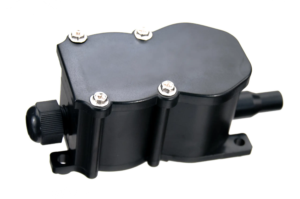

Pneumatic Switch
PS20A
Use
Air-Wave configured sensing edges and treadles
Description
Switch housed in an ABS enclosure

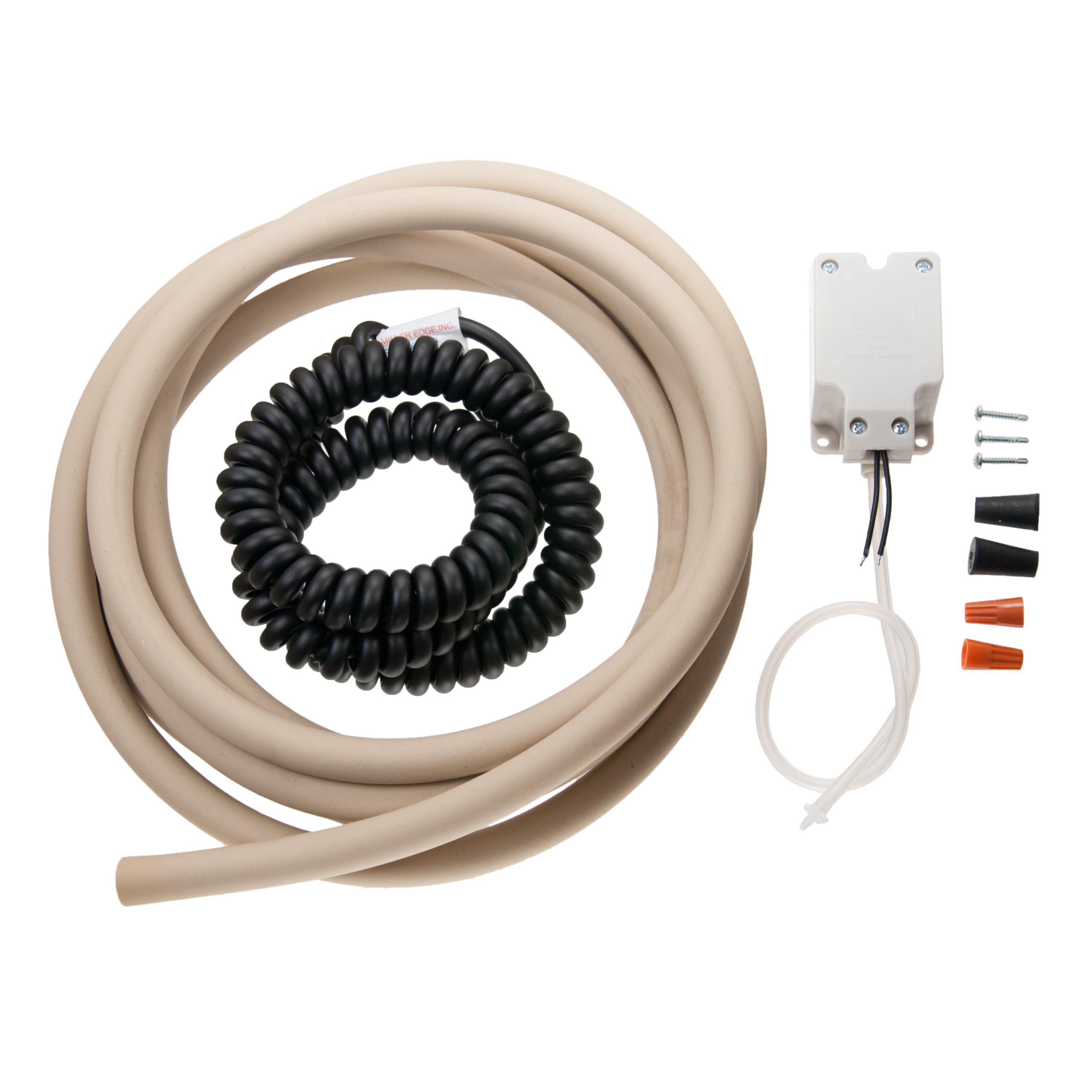

Air-Wave Edge Kits
Use
Components for a basic Air-Wave sensing edge
Description
Various kit options available.
Pneumatic Edge Kits
Use
Components for a basic pneumatic sensing edge
Description
Various kit options available.

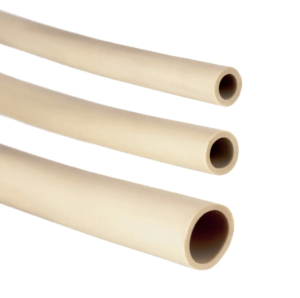

Gun Rubber Hose
RAH-375,
RAH-500,
RAH-750.
Use
Air-Wave and Pneumatic switches and configured sensing edges, bulb seal,
loop seal
Description
RAH-375: 3/8” i.d., 1/8” wall, per foot
RAH-500: 1/2” i.d., 1/8” wall, per foot
RAH-750: 3/4” i.d., 1/8” wall, per foot

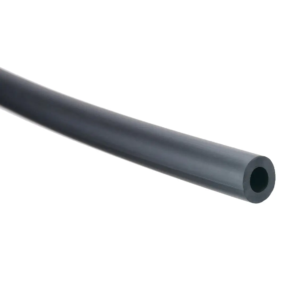

Hard Rubber Hose
HRH-375
Use
Connects Pneumatic sensing edges to switch
Description
3/8” i.d., 1/8” wall
Plugs
P-50H, P-50,
P-75H, P-75
Use
Connects Gum Rubber Hose to Air-Wave or Pneumatic edge switch
Description
P-50H: With hole; se with RAH-375 or RAH-500
P-50: End Plug; se with RAH-375 or RAH-500
P-75H: With Hole; Use with RAH-750
P-75: Use with RAH-750
Barbed Elbow Connector
218-27-18
Use
Connects Air-Wave or pneumatic switch to plug
Description
3/32-in. x 3/32-in.
Questions? Contact us today for more information about safeguarding solutions.
