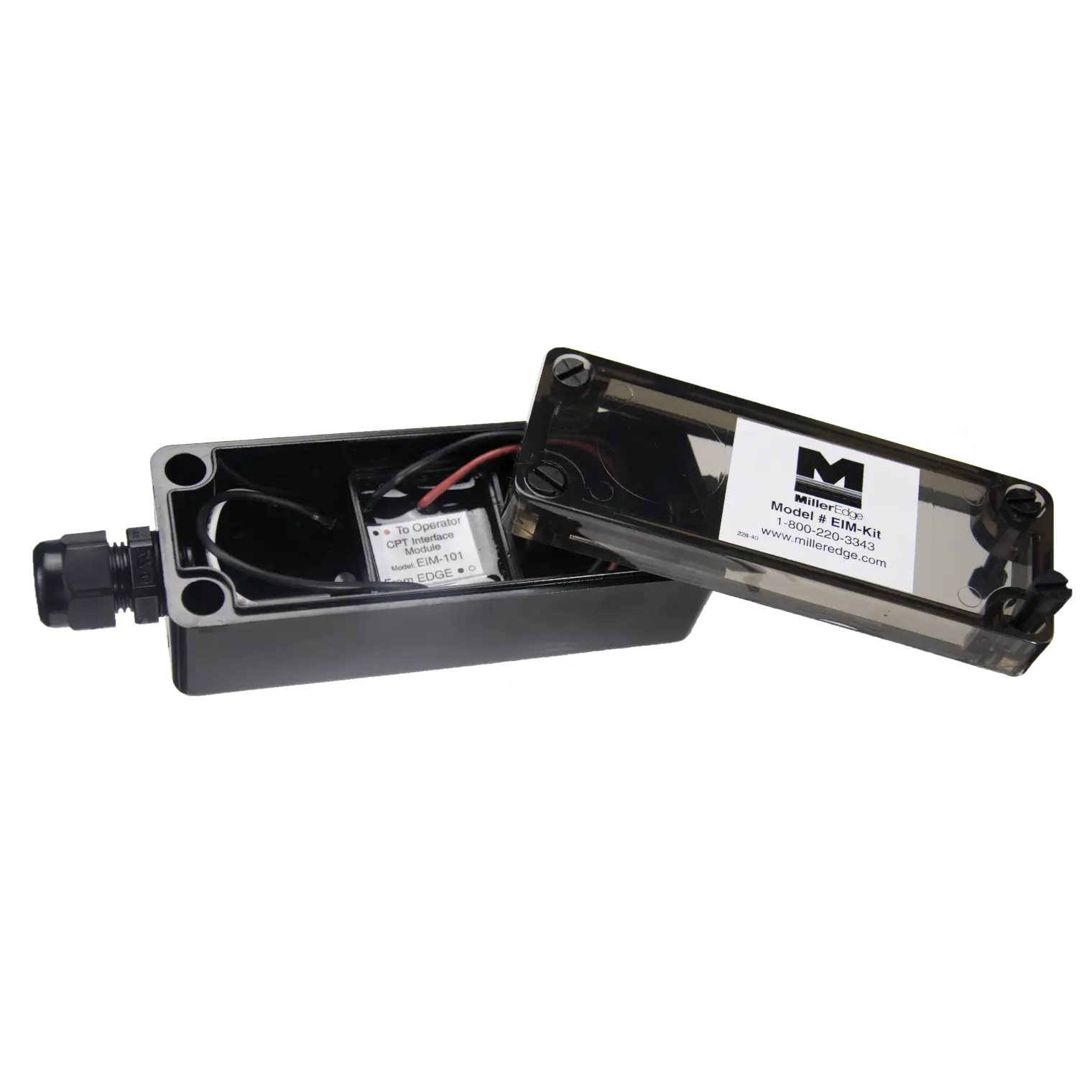

Electrical Interface Module

EIM-101

OPERATOR INTERFACE MODULE

The Miller Edge Electrical Interface Module (EIM) is designed for pre-2010 commercial door operators that utilize a 24 volt control circuit. EIM allows for use of Miller Edge non-monitored CPT or other high resistance sensing edges on relay logic (electro-mechanical) controlled operators. EIM is equipped with LED lights that indicate device power or fault conditions, is easy to install, and includes a NEMA 4 junction box.

COMPATIBILITY & APPLICATIONS

Provides compatibility between high-resistance sensing edges and legacy commercial door operators.

Compatible Safety Devices

CPT series sensing edges
Other non-monitored, high-resistance sensing edges

Supported Operators

Commercial door operators manufactured before August 2010 with 24V relay logic (electro-mechanical) control circuits

Features

Converts a high resistance input to a positive, normally open, dry contact output for pre-2010 commercial door operators
Allows use of CPT edges on relay logic operators
LED lights indicate device power or fault conditions
Easy wiring connections
Includes junction box for installation with coil cord or retracting reel
Includes NEMA 4 protection from moisture, dirt, and dust
UL 325 Recognized Component
1-year warranty
