Gate Edge Module

GEM

OPERATOR INTERFACE MODULE

Gate Edge Module (GEM) is designed to convert a hard-wired 10K resistive gate sensing edge to a monitored normally closed, 2-wire pulsed, or 4-wire pulsed sensing edge output required by some commercial gate operators. This allows for compatibility with nearly all UL 325 compliant gate operators manufactured after January 2016. GEM is equipped with LED lights that indicate device power or fault conditions. It is easy to install and features a compact size that fits inside the gate operator.

COMPATIBILITY & APPLICATIONS

For use with UL Listed gate operators requiring a specific monitored input type. GEM modules allow 10K resistive sensing edges to interface with a wide range of operator brands and models.

Compatible Safety Devices

10K resistive monitored sensing edges

Supported Operators

UL Listed gate operators manufactured after January 2016 with one of the following input types:
- 2-wire pulsed input (GEM-102)
- 4-wire pulsed input (GEM-103)
- Normally closed input (GEM-104)

Features

Converts a 10K resistive monitored sensing edge to the output required by various gate operators:
- GEM-102: 10K edge to 2-wire pulsed output

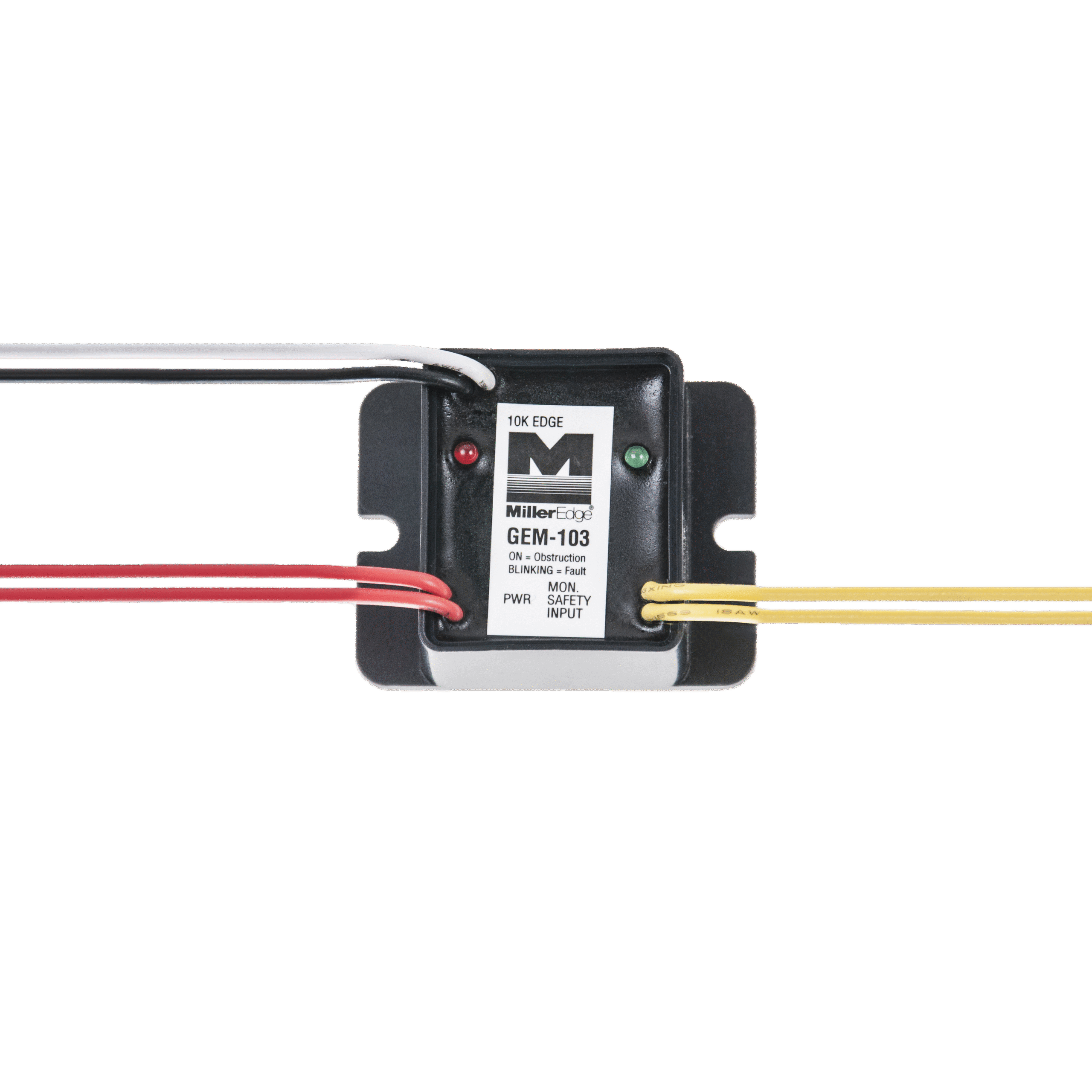

- GEM-103: 10K edge to 4-wire pulsed output

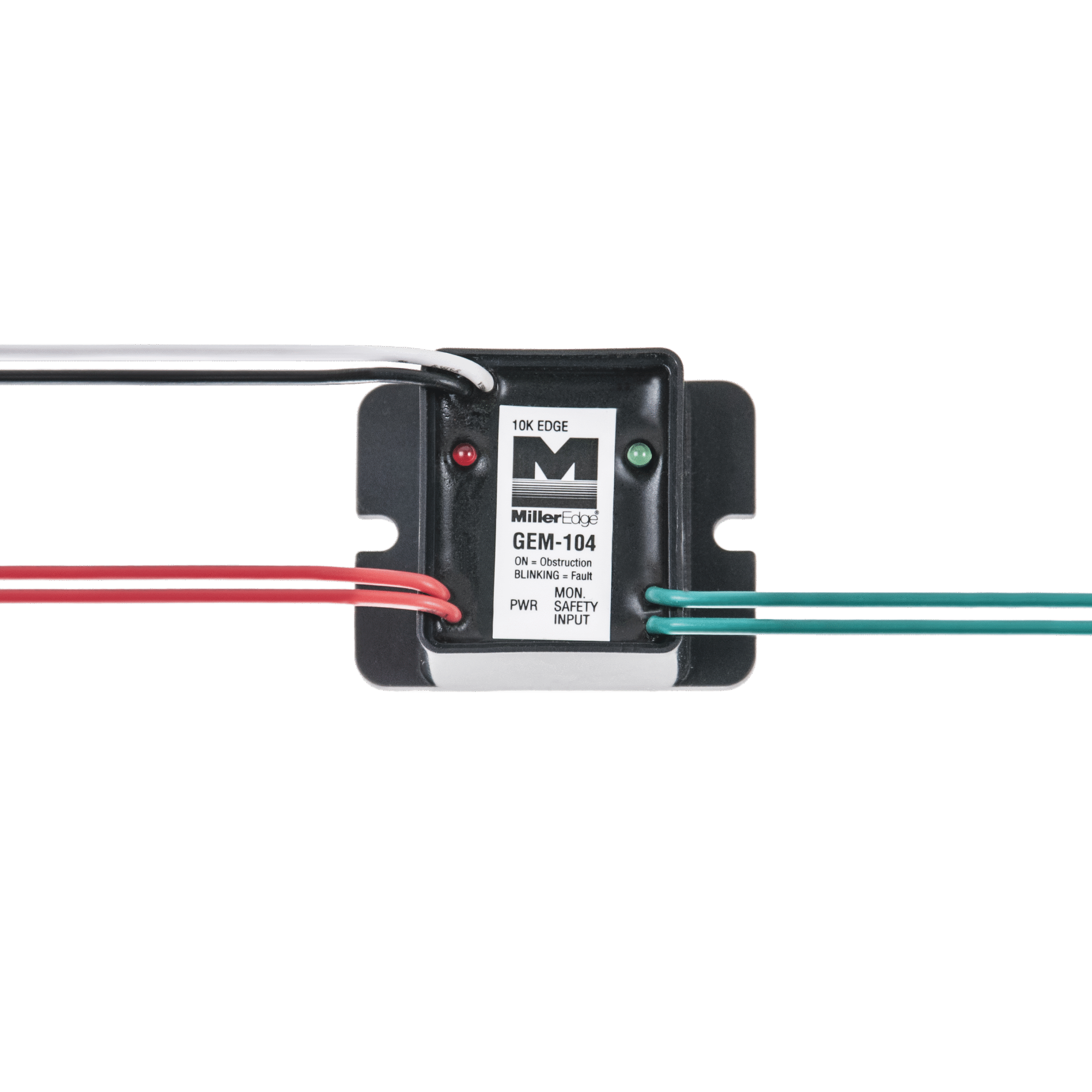

- GEM-104: 10K edge to normally closed output
LED lights indicate device power or fault conditions
Small profile fits easily inside operator chassis
Easy to install
NEMA 4 protection from moisture, dirt, and dust
UL 325 Recognized Component
1-year warranty
