Signature Module

SM

OPERATOR INTERFACE MODULE

The Miller Edge Signature Module converts a 10K or diode capacitor configured sensing edge or photo optic device output to a pulsed signal, as required by UL 325-compliant commercial door and automated gate operators. Both models are engineered to meet operator-specific input requirements and ensure reliable system compatibility. Built-in LED indicators provide clear status updates for power and fault conditions. Each module includes a standard junction box and is designed for quick, hassle-free installation.

Compatibility & Applications

For use with UL Listed operators that require a pulsed signal from connected safety devices.

Compatible Safety Devices

Diode capacitor sensing edges (SM-101)
10K resistive sensing edges and photo optic sensors (SM-102)

Supported Operators

UL Listed operators requiring pulsed input from safety devices:
- Commercial door operators manufactured after August 2010
- Gate operators manufactured after January 2016

Features

Converts a monitored sensing edge or photo eye to a pulsed output as required by an operator:

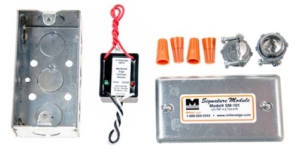

- SM-101: Converts a diode capacitor signal

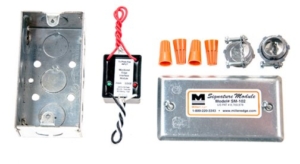

- SM102: Converts a 10K resistive signal
LED lights indicate device power or fault conditions
Easy wiring connections
Includes junction box for installation with coil cord or retracting reel
UL 325 Recognized Component
1-year warranty
