Sensing Edge

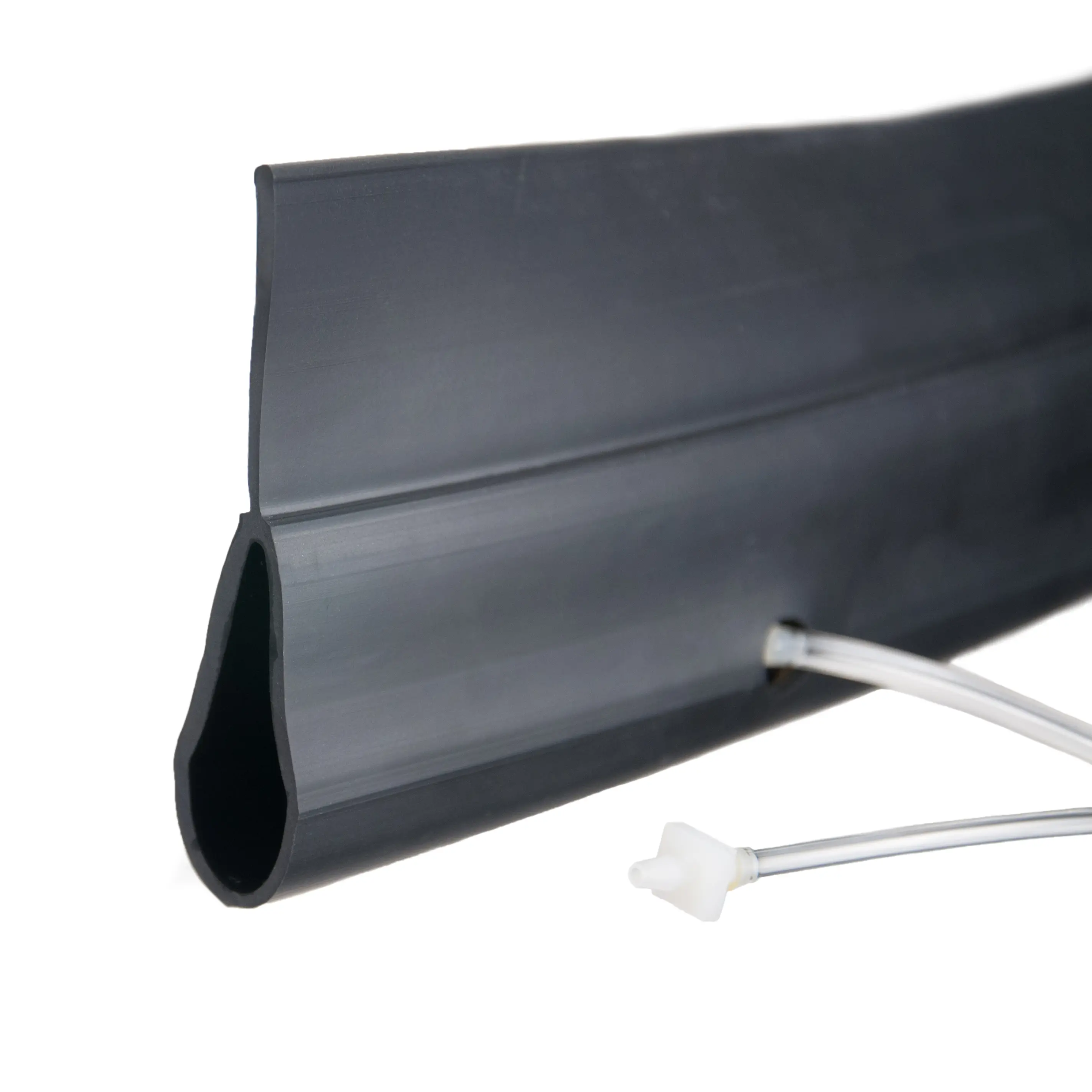

MBSAW500
TOUCH SENSITIVE SIGNALING
MBSAW500 is an introductory non-monitored Air-Wave sensing edge. When the sensing edge comes into contact with an obstruction, an air pressure wave is pushed through the internal hose to an external Air-Wave switch (sold separately). The diaphragm inside the switch then activates an electrical contact, which sends a signal to operator controls to stop and/or reverse door operation. The top tab inserts between the double-L angle bottoms bars on a rolling door.
Applications
- Rolling steel doors
Features
- Cost effective safeguarding solution
- Non-monitored Air-Wave technology
- Can be trimmed in the field for custom fit
- 1-year warranty
- Made in USA
Resources
|
|
|
|

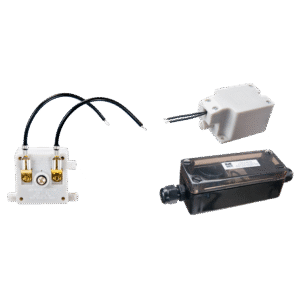

Air-Wave Switches |

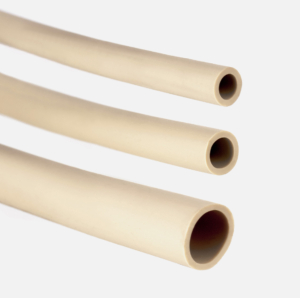

Air Hoses & Components |
