Field Configurable Sensing Edge

CPT210

TOUCH SENSITIVE SIGNALING

The CPT210 field-configurable sensing edge delivers flexibility and reliability built for real-world conditions. UL 325 Recognized and engineered for easy on-site assembly, CPT210 keeps installers moving fast while offering confidence in code compliant safety.

Its slim 1-inch profile is ideal for narrow surfaces and pinch points, and the extrusion can be cut to length on the job site, eliminating lead times and keeping projects on schedule. Featuring advanced easy-ID color-coded end plugs and a sealed, adhesive-free end design, CPT210 streamlines installation, resists dust and moisture, and offers multiple monitoring options for seamless operator integration. From quick setup to long-term performance, CPT210 makes safeguarding simple, flexible, and reliable.

Applications

Automated vehicular gates
Commercial motorized rolling counter shutters and grilles
Automated machinery guarding
Automated conveyor systems

Features

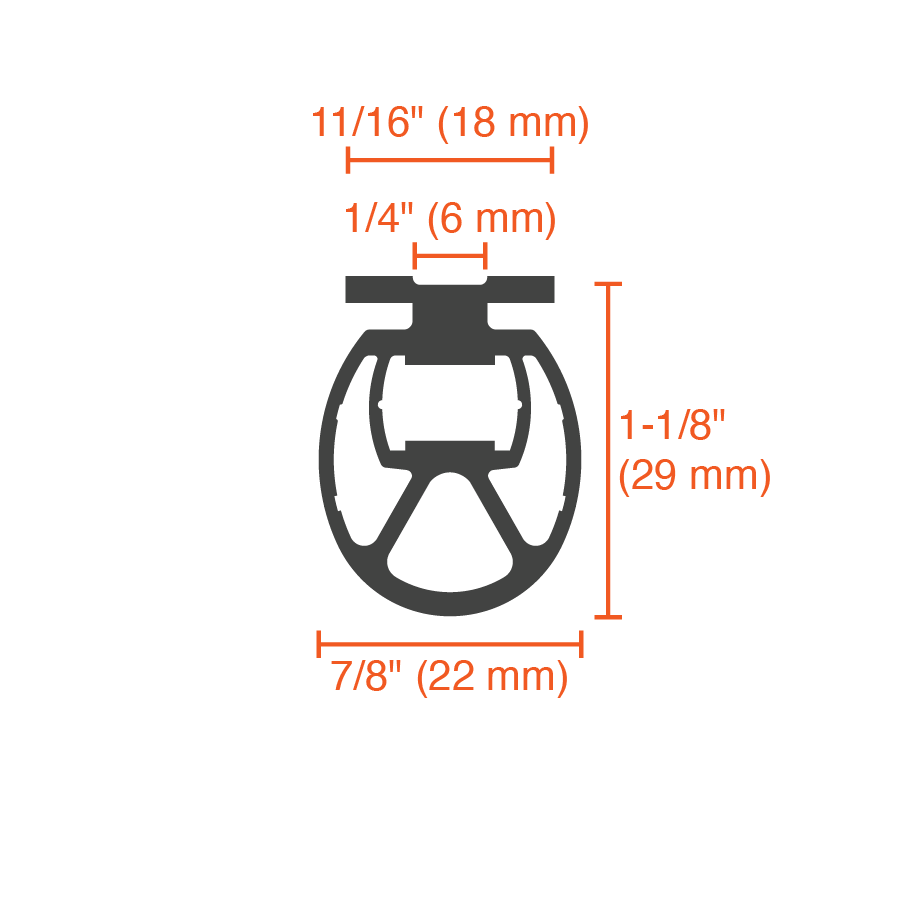

Slim, versatile 1-inch profile for narrow surfaces and pinch points
Cut-to-length convenience eliminates delays and lead times

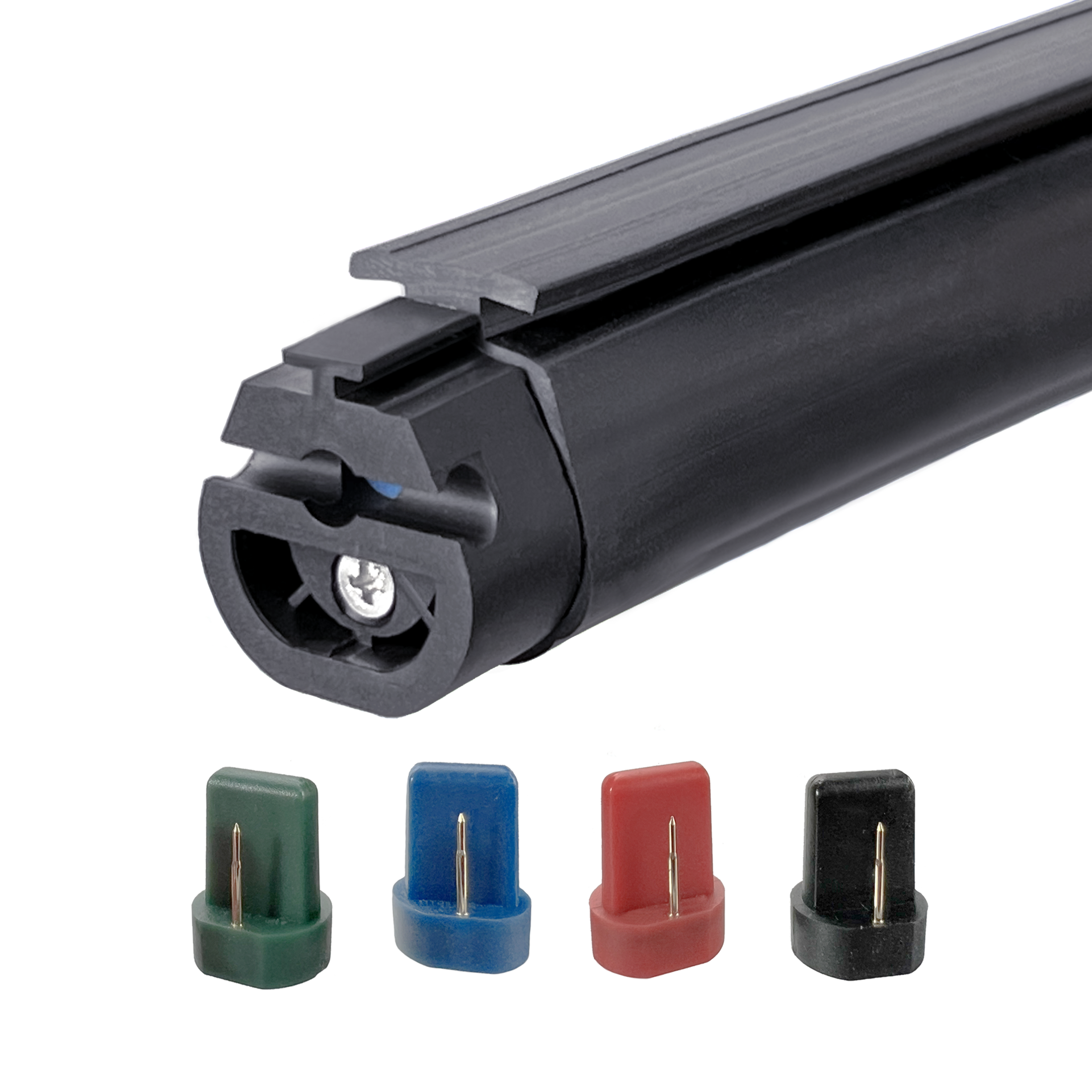

Easy-ID, color-coded end plugs simplify configuration and field identification
Sealed, adhesive-free design installs cleanly and resists dust and moisture
Flexible monitoring options compatible with a wide range of operators
Advanced conductive polymer technology ensures reliable performance
Mounts vertically or horizontally for maximum versatility
UL 325 Recognized, CE Certificate of Compliance
Made in the USA
2-year warranty

Resources

Sell Sheet
Especificaciones
Installation Instructions
Assembly Video

General Specifications

Color	Black
Maximum Length	50 ft.
Sensitivity	Nominal 3-5 lbf
Lead Wire	12 in., 22 gauge, SJTO
Wire Outlet Location	Universal end plug
Electrical Maximum	24 volts AC/DC, 1/2 amp
Electrical Configuration	Normally open non-terminated or terminated: 8.2K ohm, 10K ohm, or diode capacitor options
Operating Temperature	Meets or exceeds UL requirement
Materials	Extrusion: Flexible PVC, conductive polymer Ends: Molded polymer
Contact Element	Conductive polymer
Agency Approvals	UL 325 Recognized Component, CE Certificate of compliance

Assembly

Options

Configurations:·

Bulk Extrusion
- CPT210-50: 50-ft. (15 m) roll
- CPT210-100: 100-ft. (30 m) roll
End Kits
- CPT210-ENDKIT-T1: 8.2K Monitored and Non-Monitored End Kit
- CPT210-ENDKIT-T2: 10K Monitored and Non-Monitored End Kit
- CPT210-ENDKIT-T3: Diode Capacitor Monitored and Non-Monitored End Kit
- CPT210-ENDKIT-U: 8.2K, 10K, and Diode Capacitor Monitored and Non-Monitored End Kit
Edge Kits
- CPT210-EDGE-5-T1T2: 5-ft. Edge Kit––8.2K and 10K Monitored and Non-Monitored with ME210-C7 mounting channel
Mounting Channel Options

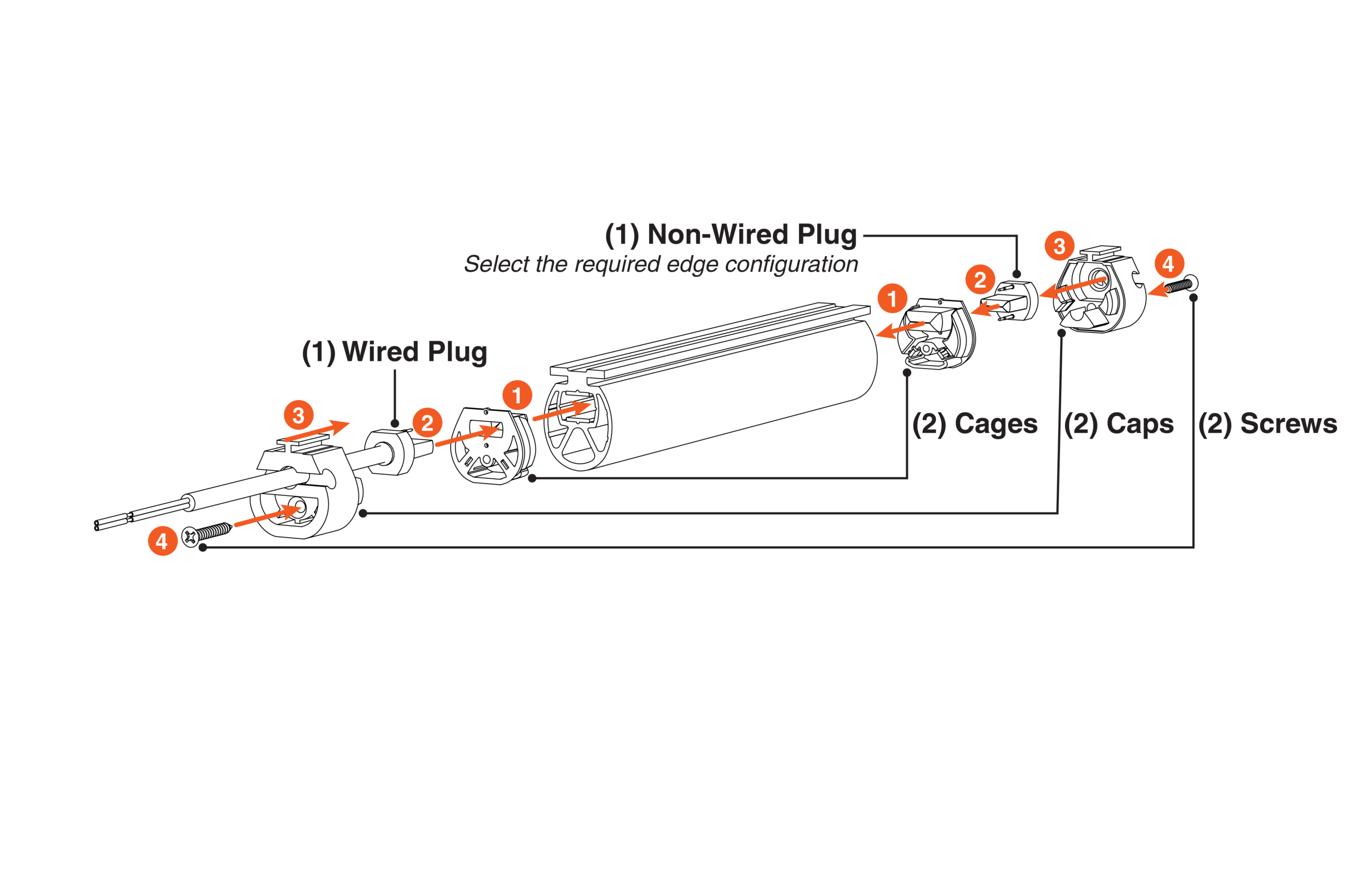

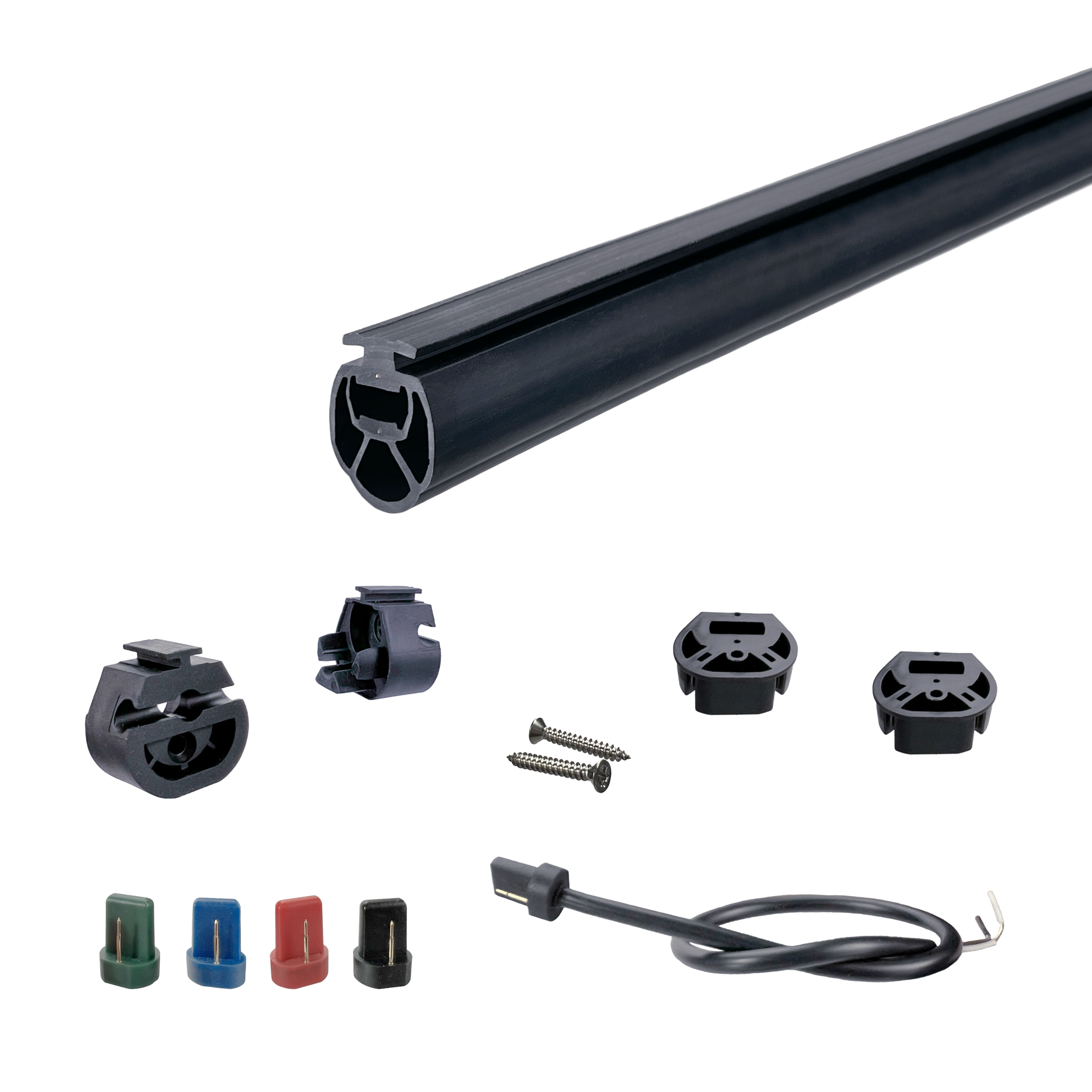

CPT210 Sensing Edges Include:

Conductive extrusion
(1) Wired end plug
(1) Non-wired end plug—choose from:
- Monitored
  - 8.2K Resistor (green)
  - 10K Resistor (blue)
  - Diode capacitor (red)
- Non-monitored
  - Non-terminated (black)
(2) End caps
(2) End cages
(2) Stainless steel screws

Optional: Mounting channels (see Accessories)

Accessories

Optional Mounting Channels

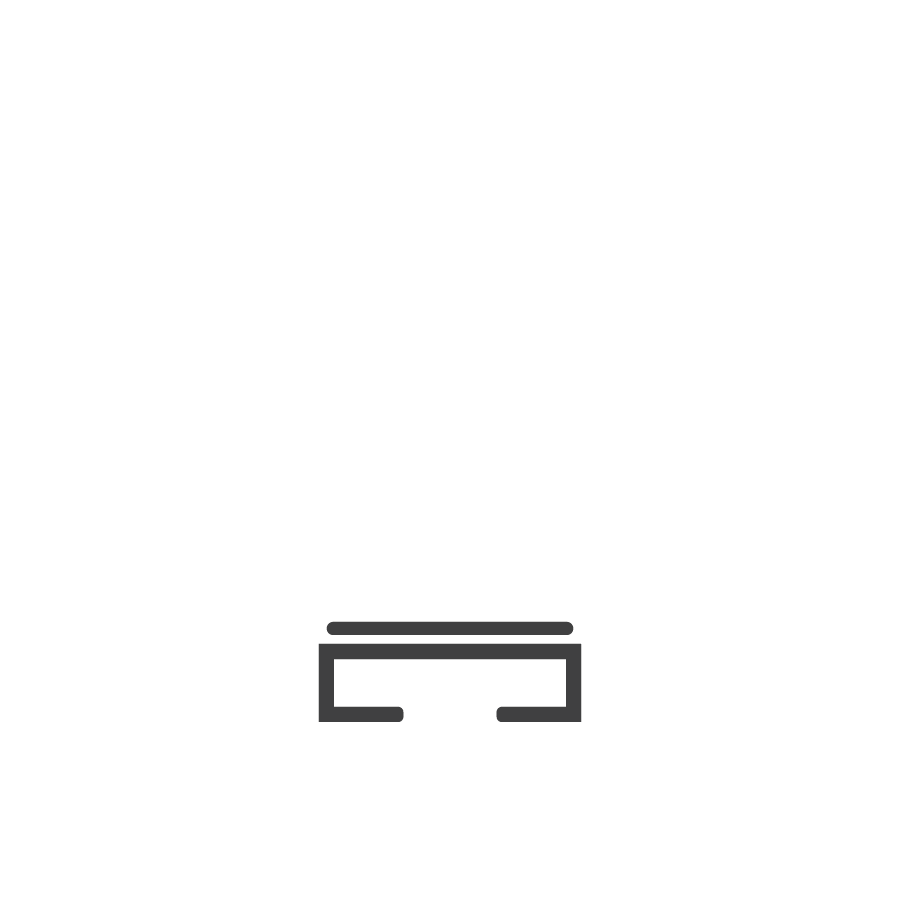

ME110-C PVC (black)	ME110-C2 PVC (black)	ME110-C3 PVC (black)

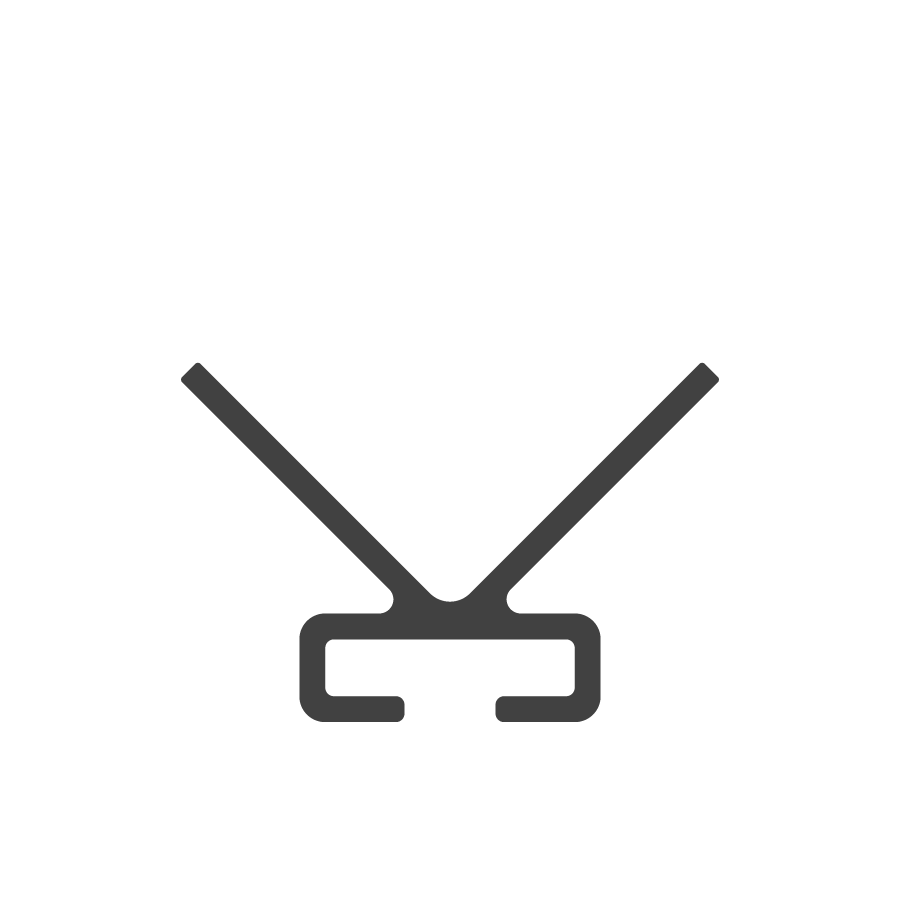

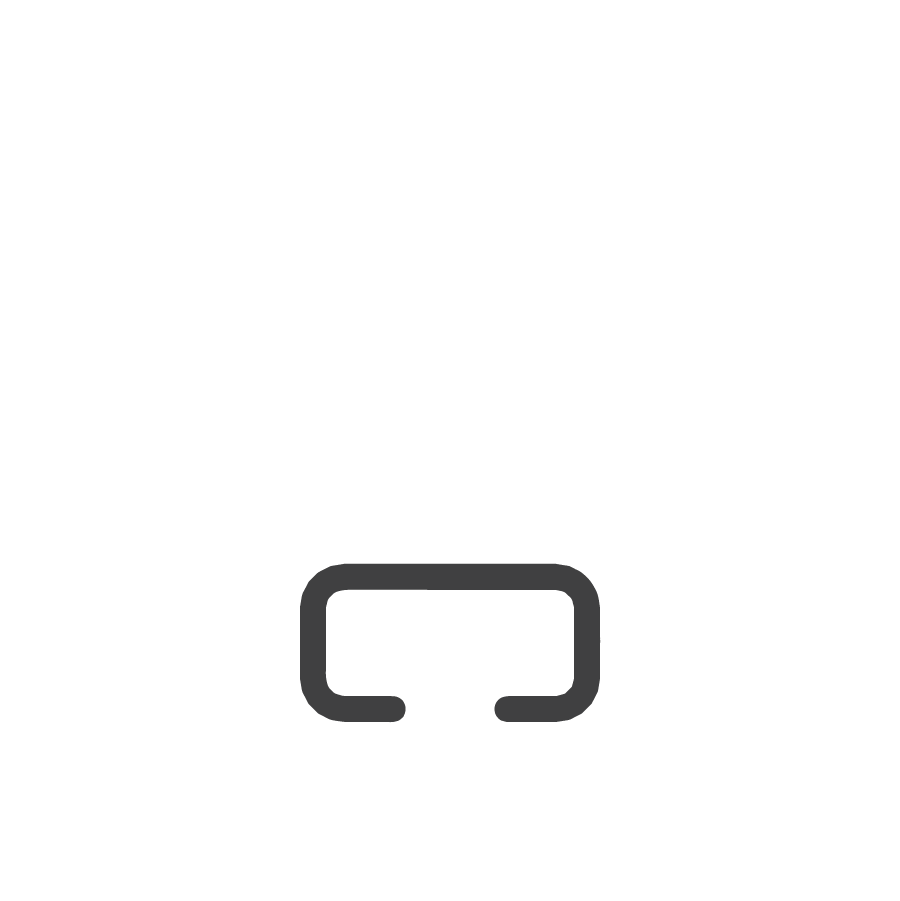

ME120-C Aluminum (black)	ME120-PC PVC (black)	ME120-C5 Aluminum (black)
