Sensing Edge

MT33

TOUCH SENSITIVE SIGNALING

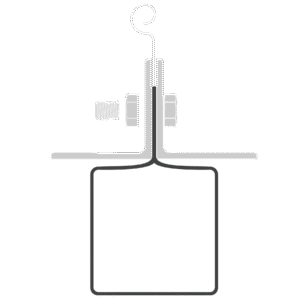

The MT sensing edge product line consists of three standard models: MT21 (2”W x 1”H), MT22 (2”W x 2”H), and MT33 (3”W x 3”H). When touched lightly, the sensing edge will send an immediate signal to operator controls to stop and/or reverse door operation. The MT edge switch is covered in a durable vinyl jacket. The top tab inserts between the double-L angle bottoms bars on a rolling door. These sensing edges are flexible and can conform to irregularities in the floor.

Applications

• Rolling fire doors

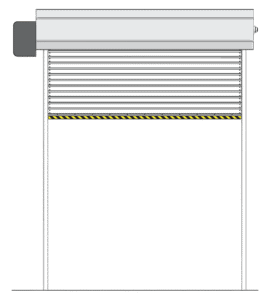

• Rolling steel doors
• Material handling systems

Features

• Optimum size for 2+ inch thick surfaces
• Custom manufactured to user specifications for color, length, and outlet location
• Three standard models: MT21 (2”W x 1”H), MT22 (2”W x 2”H), MT33 (3”W x 3”H)
• 5-6 inch end flaps create a complete seal and can be trimmed for custom fit

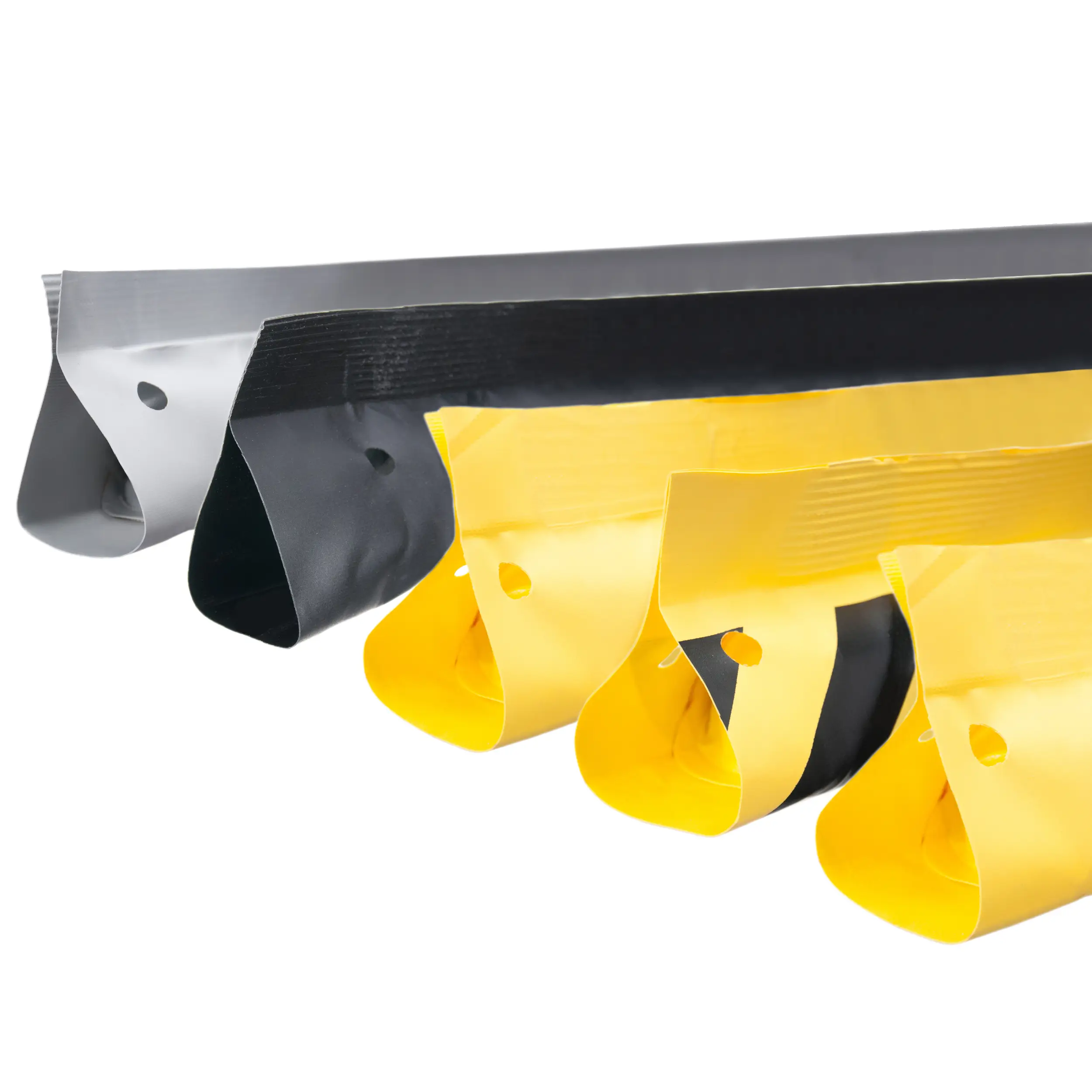

• Extended color options including yellow chemical resistant XR5 jacket
• Flexible and will conform to floor irregularities
• Sealed assembly impervious to dust and debris
• Patented Alumaglas^™ for superior performance (electric option)
• UL 325 Recognized Component
• 1-year warranty
• Made in USA
