Wireless Air-Wave System

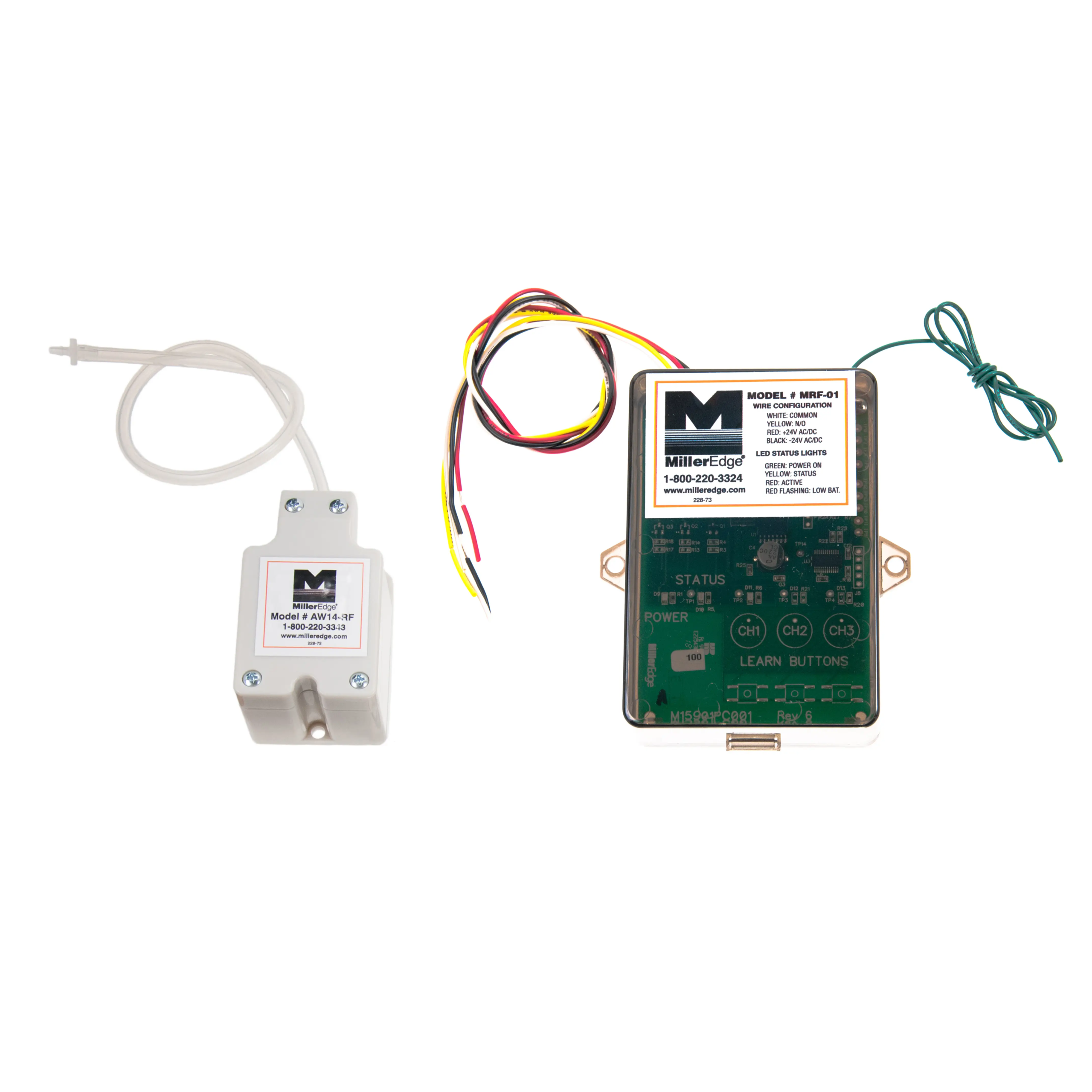

AW14-RF-K10
NON-MONITORED WIRELESS EDGE SOLUTION
The AW14-RF-K10 Wireless Air-Wave Edge System utilizes airpressure, via an air-wave sensing edge, to activate a diaphragm contactwithin the wireless transmitter switch. This contact converts the pressurewave into an electrical contact, which alerts theoperator to stop and/orreverse when there is an obstruction. Air-wave systems are speciallydesigned for doors and can withstand colder temperatures and high vibrationenvironments due to their adjustable sensitivity. AW14-RF-K10 eliminatesthe need to hardwire coil cords and retracting reels, which saves installationand maintenance time.
Applications
- Motorized doors
Features
- Easy to configure
- Non-monitored system ideal for door operators manufactured prior to August 2010
- Operates at distance up to 100 feet, depending on conditions
- Adjustable sensitivity
- Release valve for pressure and temperature compensation
- Can be used with standard pneumatic hose and Miller Edge extrusion
- 2-year warranty
Resources

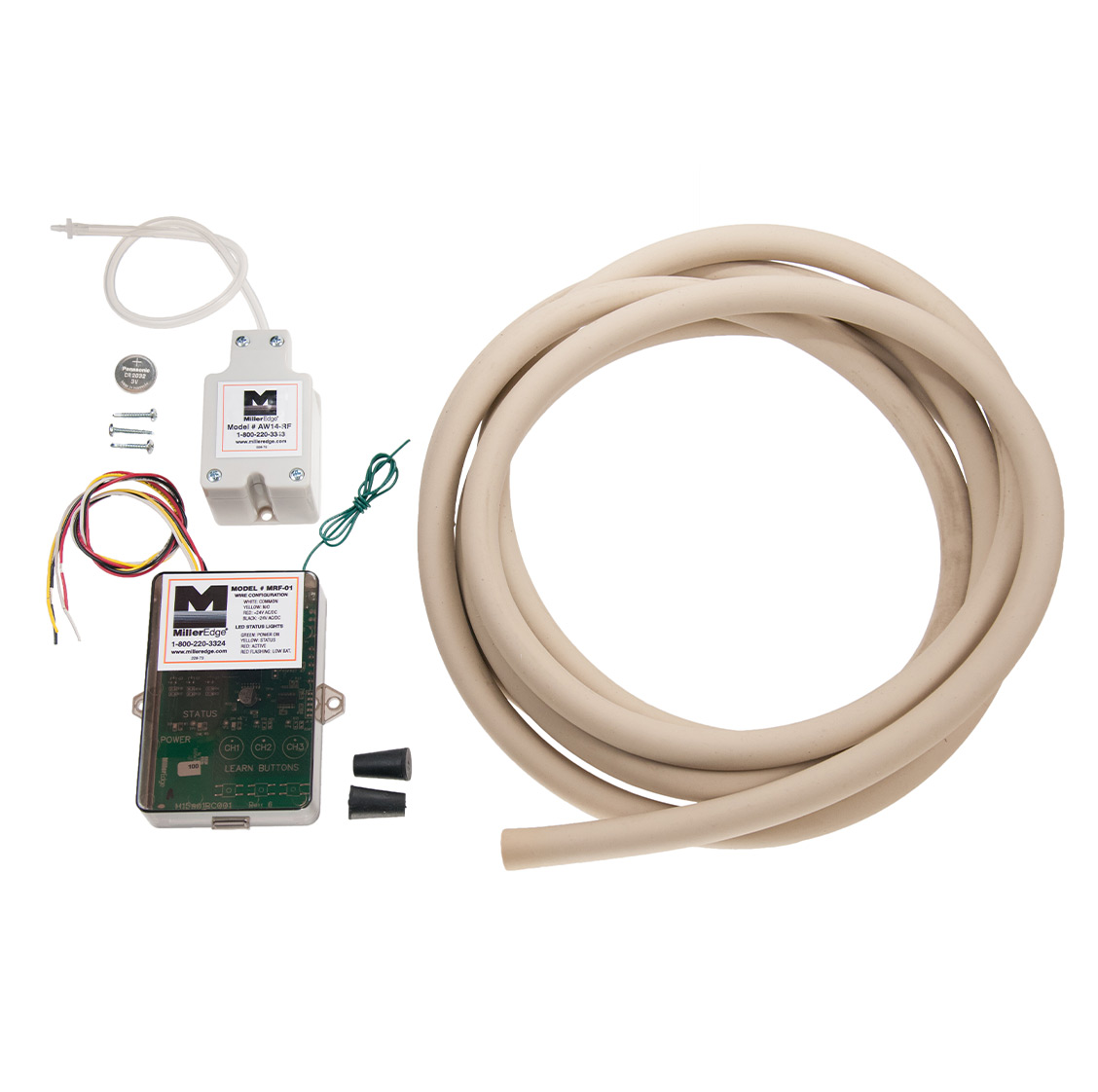

Wireless Air-Wave System Kits
Sold seperately
- AW14K500-12-RF: AW14-RF-K10, end plug, connector plug, 1/2”-12 ft. hose
- AW14K500-18-RF: AW14-RF-K10, end plug, connector plug, 1/2”-18 ft. hose
- AW14K500-24-RF: AW14-RF-K10, end plug, connector plug, 1/2”-24 ft. hose
Contact your Miller Edge Sales Rep. for more information about Wireless Air-Wave system kits.
|
|
|
