Infra-Red Control Unit

MIRCU-02

OPERATOR INTERFACE MODULE

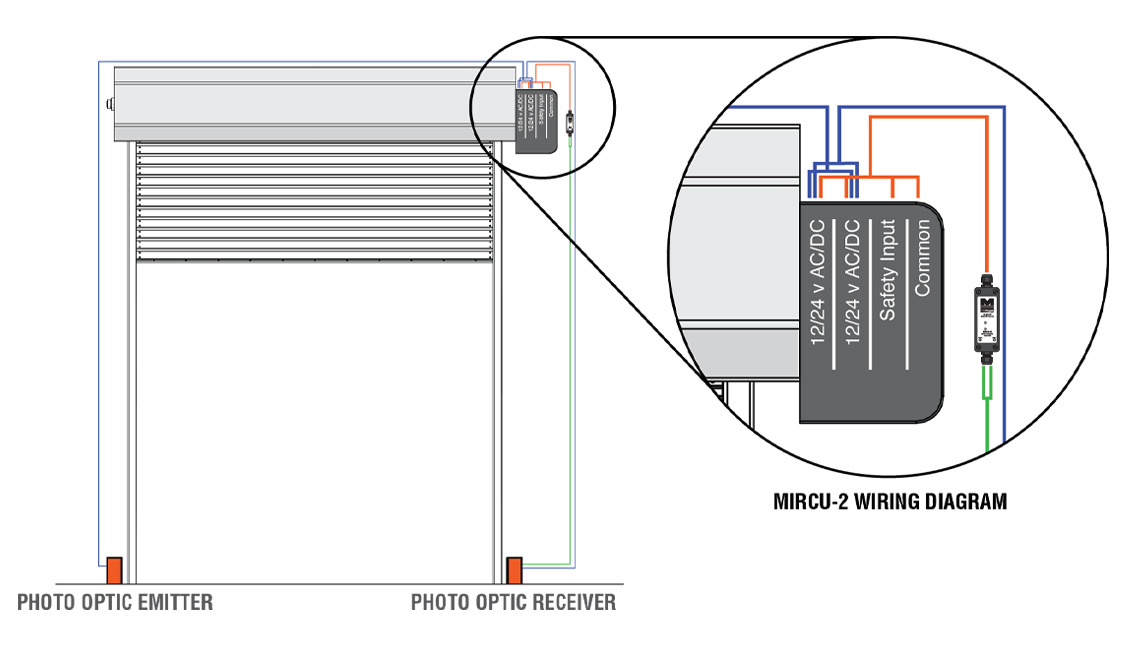

The Infra-Red Control Unit (MIRCU) is designed to convert a pulsed output from a monitored photo optic device to a normally open, non-monitored output. By converting a photo optic output to non-monitored, MIRCU allows for the use of monitored photo optic devices on older, pre-2010 operators. Additionally, MIRCU can be used to add a secondary entrapment protection if only one pulsed input is available. MIRCU has the added protection of being configured to be fail safe so that it reports a fault to the operator if power is lost.

Applications

Enables use of monitored photo optic devices with commercial door operators that do not accept a monitored input.

Compatible Safety Devices

Monitored photo optic sensors with pulsed output

Supported Operators

Commercial door operators manufactured before August 2010 that require non-monitored, dry contact inputs

Features

Converts a monitored pulsed output to a nonmonitored, dry contact output
Creates a fail-safe signal; reports a fault when power is lost
Ideal for use with pre-2010 commercial door operators not requiring a monitored device
Includes junction box for installation with coil cord or retracting reel
NEMA 4 protection from moisture, dirt, and dust
1-year warranty
