Sensing Edge

MC110

TOUCH SENSITIVE SIGNALING

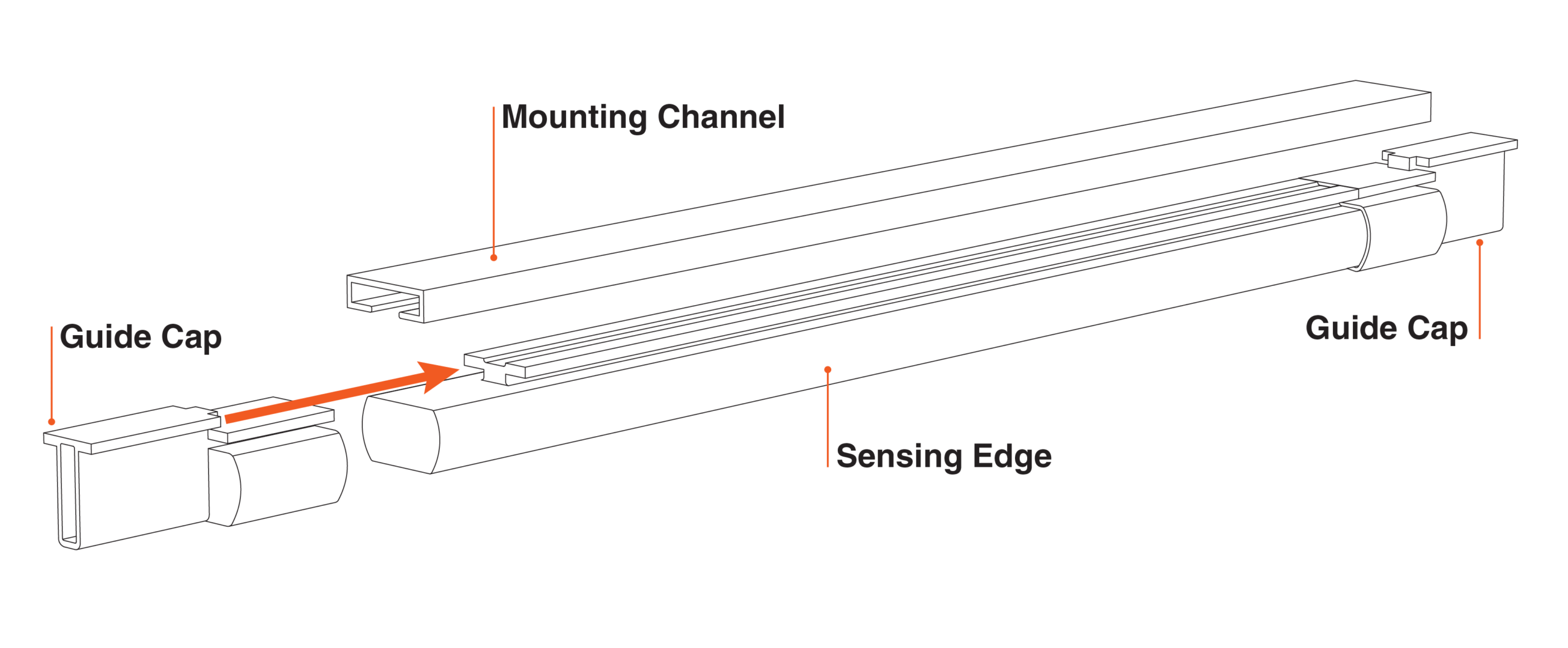

The MC110 sensing edge is designed for rolling counter shutter and grille applications, prioritizing both performance and aesthetics. When touched lightly, or at an angle, MC110 sends an immediate signal to stop and/or reverse operation. This slide-in style sensing edge integrates a unique guide cap design that efficiently blocks light along the ends of the sensing edge. Additionally, the design contributes to enhancing building efficiency by minimizing air gaps. It further acts as a barrier to pests in food service areas. MC110 contributes to an integrated appearance that seamlessly complements the overall look of a counter shutter or grille.

Applications

• Rolling counter shutters and grilles

Features

• Small profile; ideal for counter shutters and grilles
• Guide caps help to block light, air, and pests
• Easy to install · Sealed assembly impervious to dust and debris
• Custom manufactured to user specifications for length and outlet location
• Patented Alumaglas™ for superior performance (electric option)
• UL 325 Recognized Component
• 3-year warranty
• Made in USA
