Sensing Edge

MC22

TOUCH SENSITIVE SIGNALING

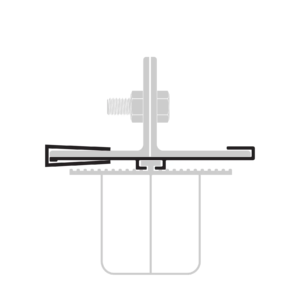

The MC22 sensing edge is custom manufactured to your exact specifications for length and outlet location. When touched lightly or at an angle, MC22 will send an immediate electrical signal to operator controls to stop, and/or reverse operations. Made with a vinyl wrapping and an extruded T, it is designed to slide into applicable door’s bottom retainer. The exterior of the MC22 is highly flexible and can conform to irregularities in the floor.

Applications

Commercial sectional doors

Features

Flexible and will conform to floor irregularities
Optimum size for 2+ inch thick surfaces
Custom manufactured to user specifications for color, length, and outlet location
5 inch end flaps create a complete seal and can be trimmed for custom fit
Sealed assembly impervious to dust and debris
Patented Alumaglas^™ for superior performance (electric option)
Extended color options including chemical resistant yellow XR5 jacket
UL 325 Recognized Component
1-year warranty
Made in USA
