LED-ORION

High-Visibility Led Alert System

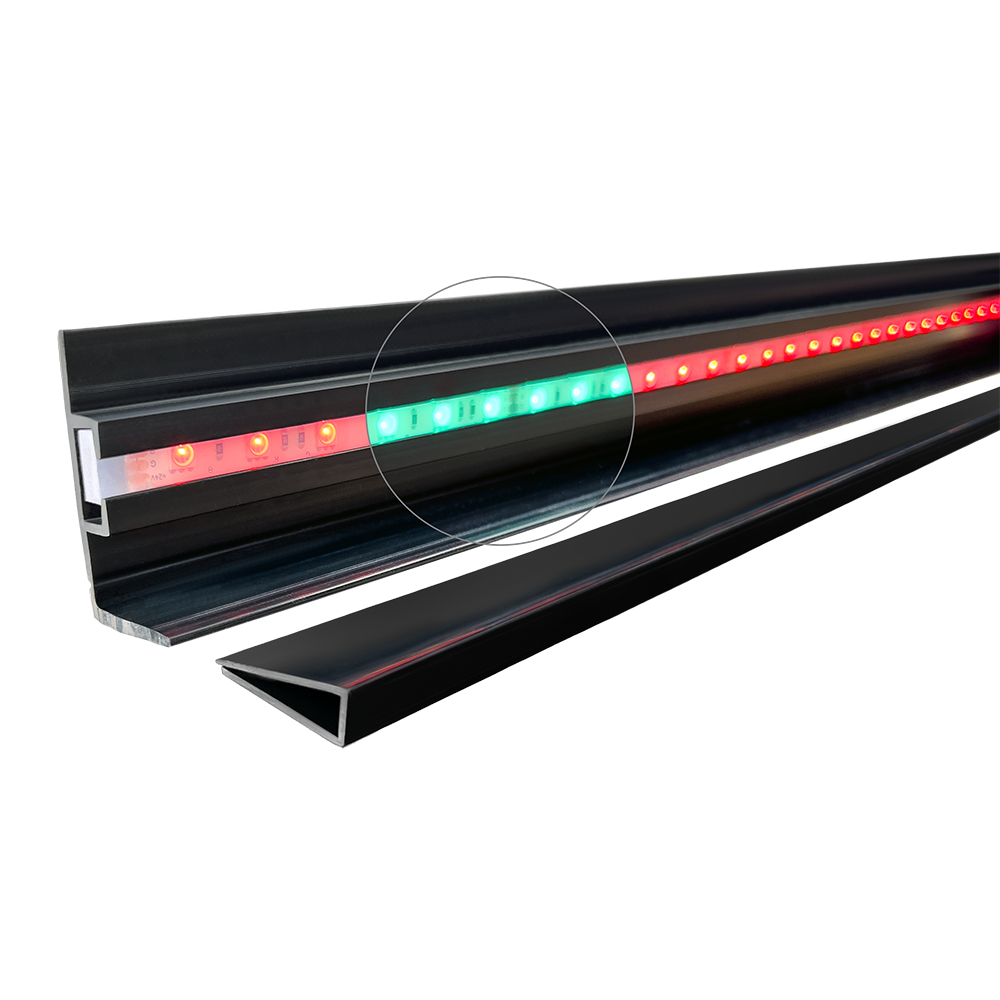

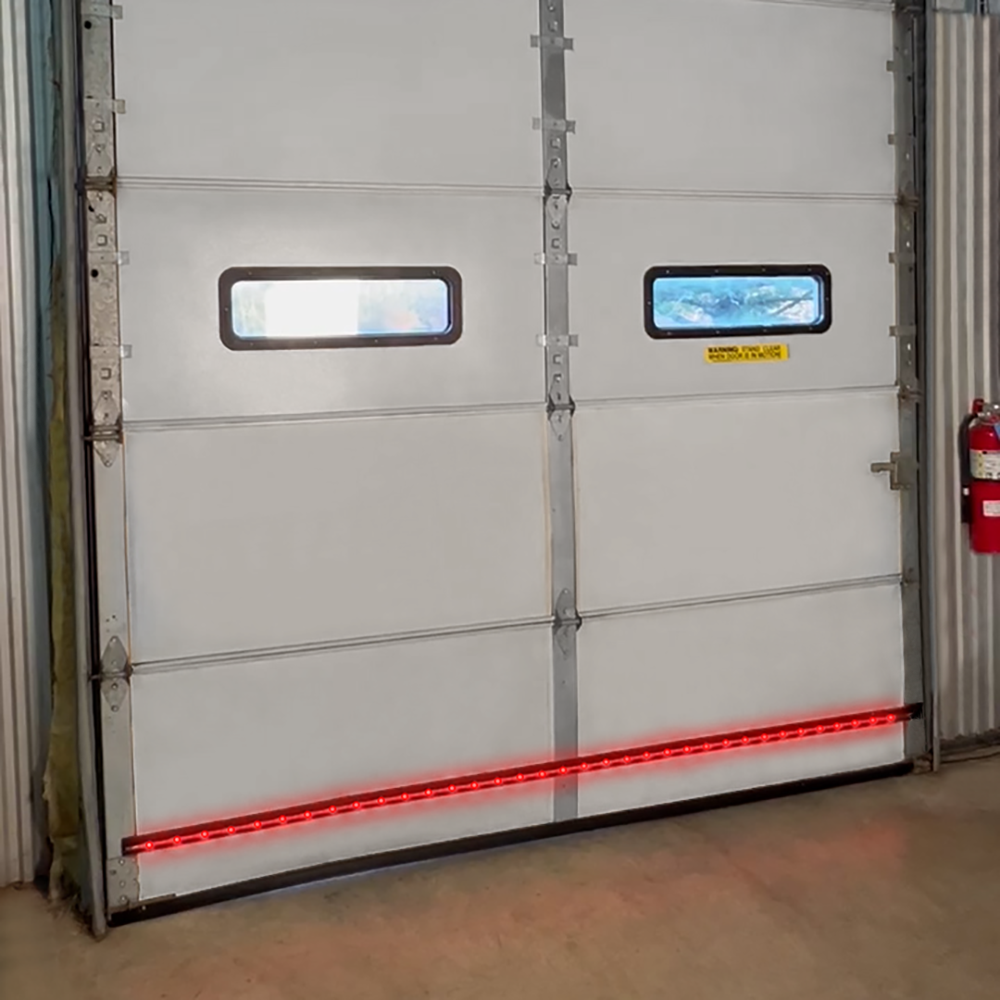

Orion™ (LED-ORION) adds bright, continuous LED visibility to commercial motorized sectional and rolling steel doors. Mounted along the door’s bottom edge, Orion provides a clear visual signal of door presence and movement. This always-on illumination complements sensing edges, photo eyes, and light curtain systems to improve awareness among pedestrians, drivers, and equipment operators in busy environments. Available in multiple lengths, Orion installs easily on the interior of the door for a clean appearance and a straightforward retrofit, delivering reliable, long-lasting performance with minimal maintenance.

Applications

Standard and high-performance:

  • Motorized sectional doors
  • Motorized rolling steel doors

Note: Not recommended for high-speed doors.

Features

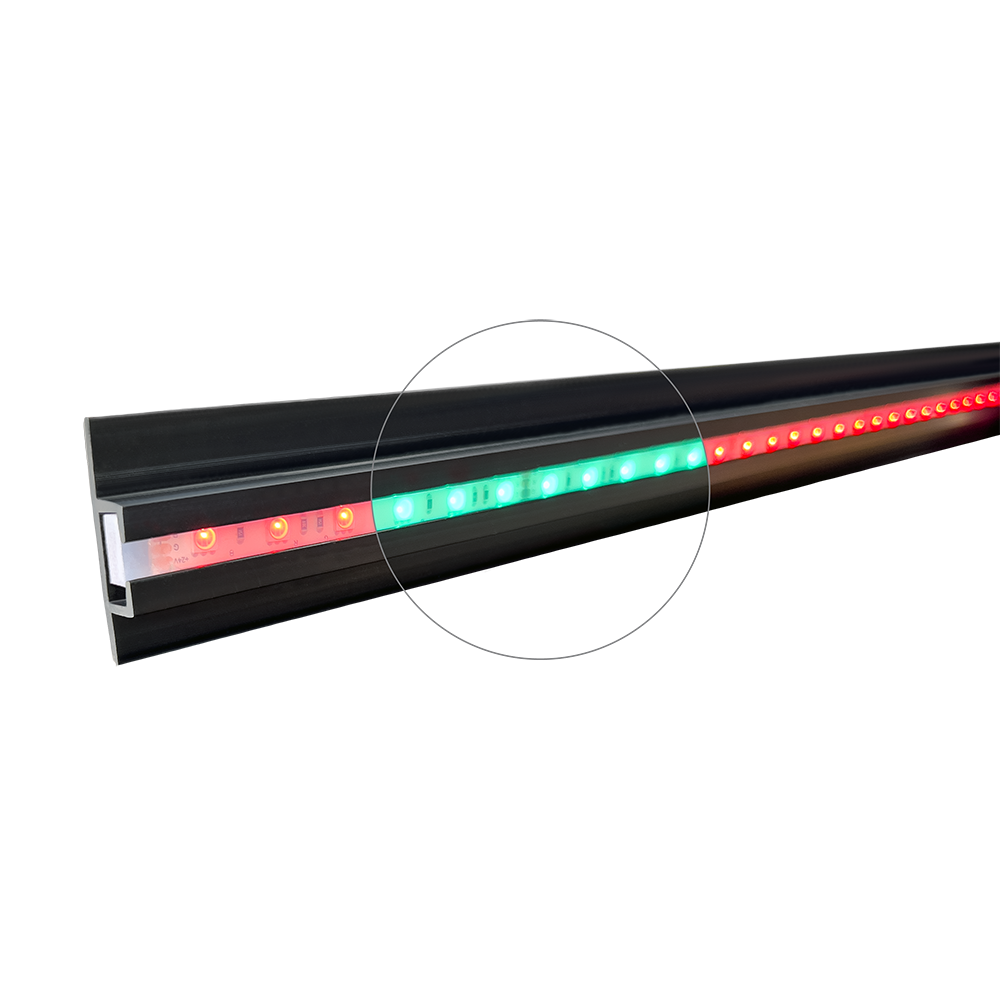

  • Always-on LED light strip: Continuous brightness for clear visibility during operation.
  • Flexible fit: Available in multiple lengths to accommodate most door widths.
  • Versatile design: Kits designed to work with both sectional and rolling steel doors.
  • Interior mounting: Installs inside the door without affecting exterior appearance.
  • Low maintenance: Long-life LEDs deliver reliable performance with minimal service needs.
  • Straightforward retrofit: Ideal for simple visibility upgrades—pair with sensing edge, photo eyes, or light curtains.
  • 2-year warranty

Resources

Sell Sheet
Installation Instructions

Models:

  • For Rolling Steel Doors (opening width)
    • 9’ to 10’ 11”: LED-ORION-24-K8
    • 11’ to 12’ 4”: LED-ORION-24-K10
    • 12’ 5” to 14’ 8”: LED-ORION-24-K12
    • Larger than 14’ 9”: LED-ORION-24-K14
  • For Sectional Doors (section width)
    • 8’ 6” to 10’: LED-ORION-24-K8
    • 10’ 1” to 12’: LED-ORION-24-K10
    • 12’ 1” to 14’ 5”: LED-ORION-24-K12
    • Larger than 14’ 6”: LED-ORION-24-K14

LED STRIP



Brightness

Red: 532 lm/m

Green: 2,392 lm/m

Signaling

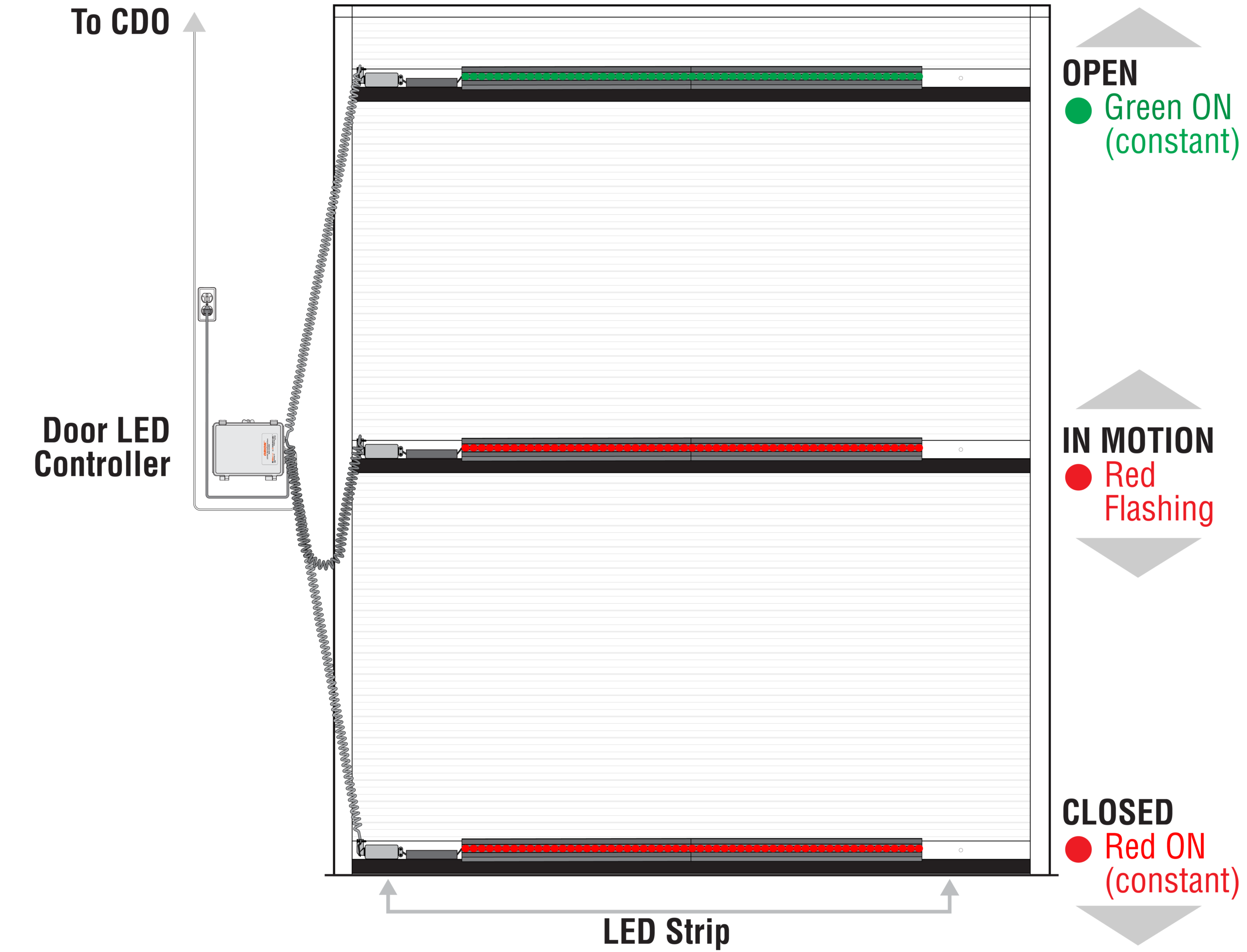

Door Opened: Solid green (constant)

Door Opening: Flashing red

Door Closed: Solid red (constant)

Door Closing: Flashing red

Lifespan

44,000 hours




PERFORMANCE



Activation

Hardwired to the commercial door operator through the Door LED Controller

Operating Temperature

-30° to +140°F (-34° to 60°C)


ELECTRICAL



Power Source

115–230V AC wall supply; LED strip operates at 24V DC


PHYSICAL



Dimensions

Controller box:

7 W x 9.5 H x 4 D-in. (178 x 241 x 102 mm)

LED strip length by model:

  • LED-ORION-24-K8: 8-ft. 4-in. (2.54 m)

  • LED-ORION-24-K10: 9-ft. 8-in. (2.95 m)

  • LED-ORION-24-K12: 11-ft. 8-in. (3.56 m)

  • LED-ORION-24-K14: 14-ft. 0-in. (4.27 m)

Cable Lengths

LED strip cable: 1-ft. (0.3 m)

LED strip extension cable: 4-ft. (2.4 m)

CDO signal cable: 20-ft. (6.1 m)

Power supply cable: 3-ft. (0.9 m)

Weights (door
mounted components)

Universal mounting channel: 9.2 oz./piece

Rolling steel door channel clip: 5.2 oz./piece

LED strip: 0.9 oz./ft.

Raceway: 1.9 oz.

Junction box and components: 7.3 oz.

Coil cord: 15.25 oz.

Materials

LED Strip: UV protected silicone sheath

Mounting Channels: High density rigid PVC

Controller LED Indicators

Door Opened: Solid green (constant)

Door Opening: Solid white (constant)

Door Closed: Solid red (constant)

Door Closing: Solid white (constant)

Mounting

Sectional doors: Universal mounting channel surface mounted with appropriate fasteners

Rolling steel doors: Universal mounting
channel + rolling door channel clips

Degree of Protection

LED strip: IP67

Controller box: NEMA 4

LED Sequence

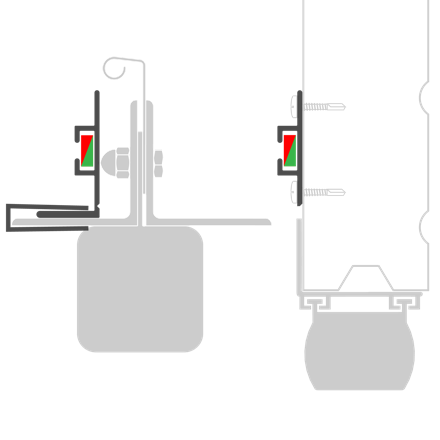

Rolling Steel & Sectional Door Mounting
