VisiLight™ Pegasus+

LED-BRM

High-Visibility Touch Sensitive Signaling

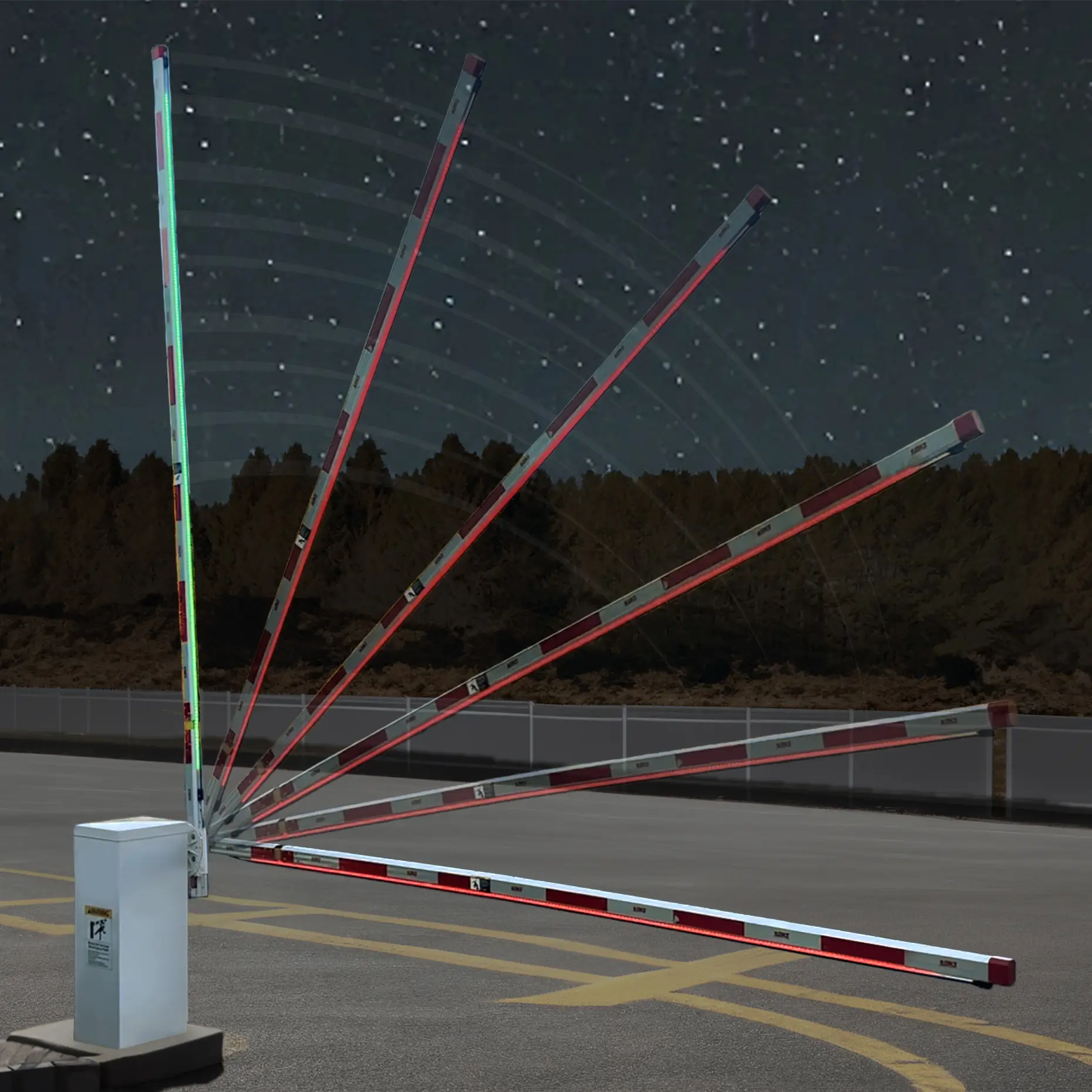

Pegasus+ (LED-BRM) combines a bright, always-on LED strip with a touch-sensitive sensing edge to deliver advanced protection for barrier arm gates. This streamlined, all-in-one solution eliminates separate retrofits, reduces complexity, and offers a durable, weather-resistant design built for long-term residential, commercial, and industrial use. The LED strip enhances driver awareness in high-traffic areas, while the sensing edge signals operator controls to stop and reverse on contact—helping reduce the risk of injury and damage.

Applications

Designed for extended use on automated barrier arm gates with DoorKing Octagonal Arms:
- Residential: Housing developments, apartment parking areas
- Commercial: Office buildings, retail centers, airports, parking facilities
- Industrial: High-security and hazardous areas
- Government & Institutional: Schools, military bases, municipal buildings

Features

Plug-and-play installation: Pre-assembled unit slides onto the barrier arm and locks with built-in end clamps.
Dual safety functions: Always-on LED visibility plus pressure-sensitive edge that stops/reverses the gate on contact.
Durable design: UV-resistant channel and long-life LEDs minimize maintenance.
2-year warranty

Resources

Sell Sheet
Installation Instructions
Video

General Specifications

Maximum Length	Model dependent
Sensitivity	Nominal 3-5 lbf
Lead Wire	29-in. wiring harness
Wire Outlet Location	End
Electrical Maximum	Sensing edge: 24 volts AC/DC, 1/2 amp, LED light: 12 volt DC

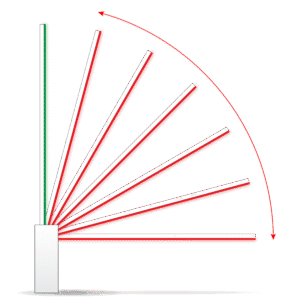

LED Light Strip	18 bi-color LED lights per foot: Red (solid): Closed, in-motion Green (solid): Open
Electrical Configuration	Normally open non-terminated
Operating Temperature	-30° to +130°F (-34° to 54°C)
Materials	Sensing edge: Flexible PVC, conductive polymer Mounting Channel: Clear, rigid PVC
Edge Contact Element	Conductive polymer
