LED-PHX
Motion-Activated LED Alert System

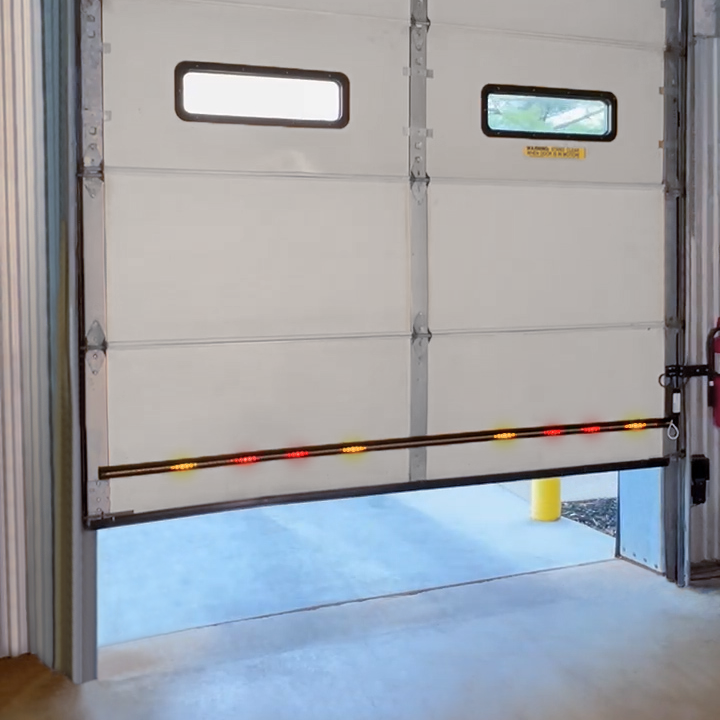

Phoenix™ (LED-PHX) delivers safety with simplicity. This responsive LED alert strip combines motion activation with inductive charging technology for the interior leading edge of motorized sectional and rolling steel doors. An integrated accelerometer triggers bright red, yellow, and green LEDs when the door is in motion—providing clear visual signaling to keep people and equipment out of harm’s way.
Phoenix operates independently of the door operator for faster installation and reduced maintenance. Inductive charging pads eliminate coil cords and retracting reels, delivering up to 60 hours of runtime (about 100 door cycles) on a single charge.
The result is a plug-and-play upgrade that enhances visibility, improves safety, and integrates seamlessly with photo eyes or light curtain systems—helping you protect people and productivity.
Applications
Standard and high-performance:
- Motorized sectional doors
- Motorized rolling steel doors
Note: Not recommended for high-speed doors.
Features
- Two models

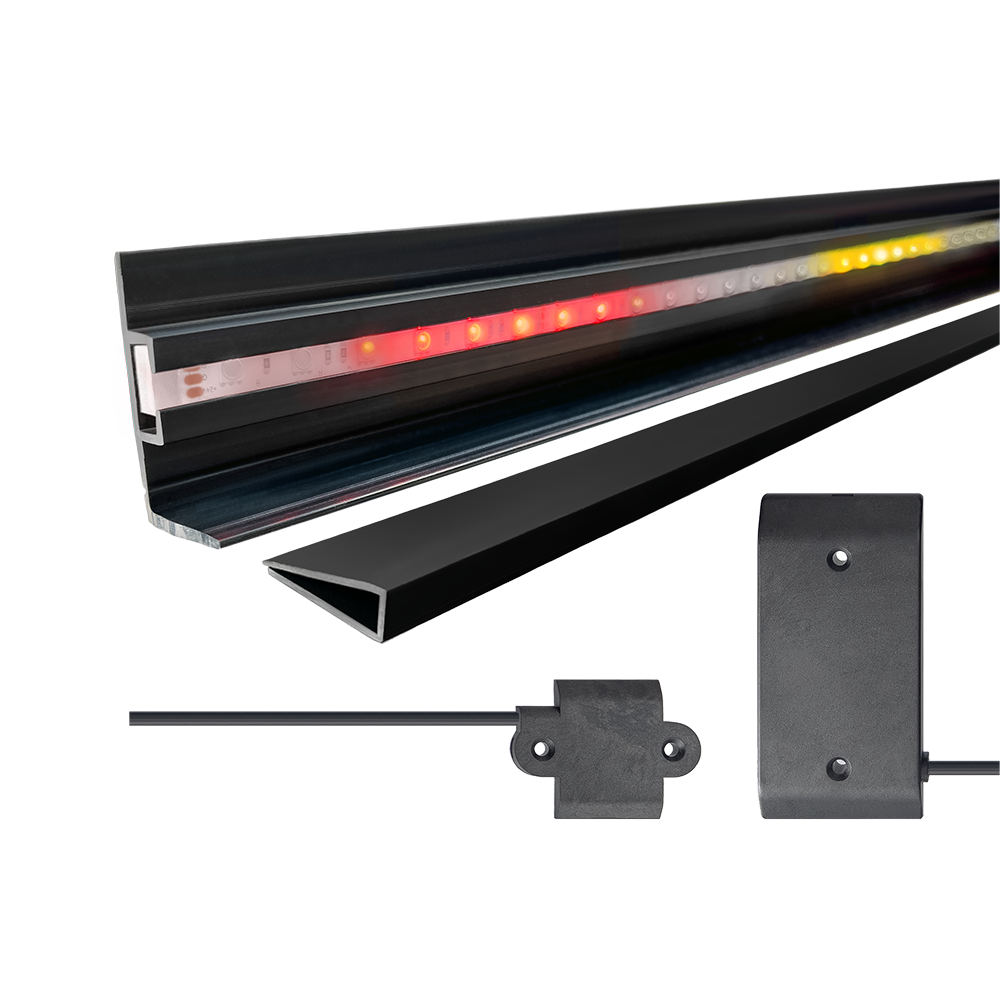

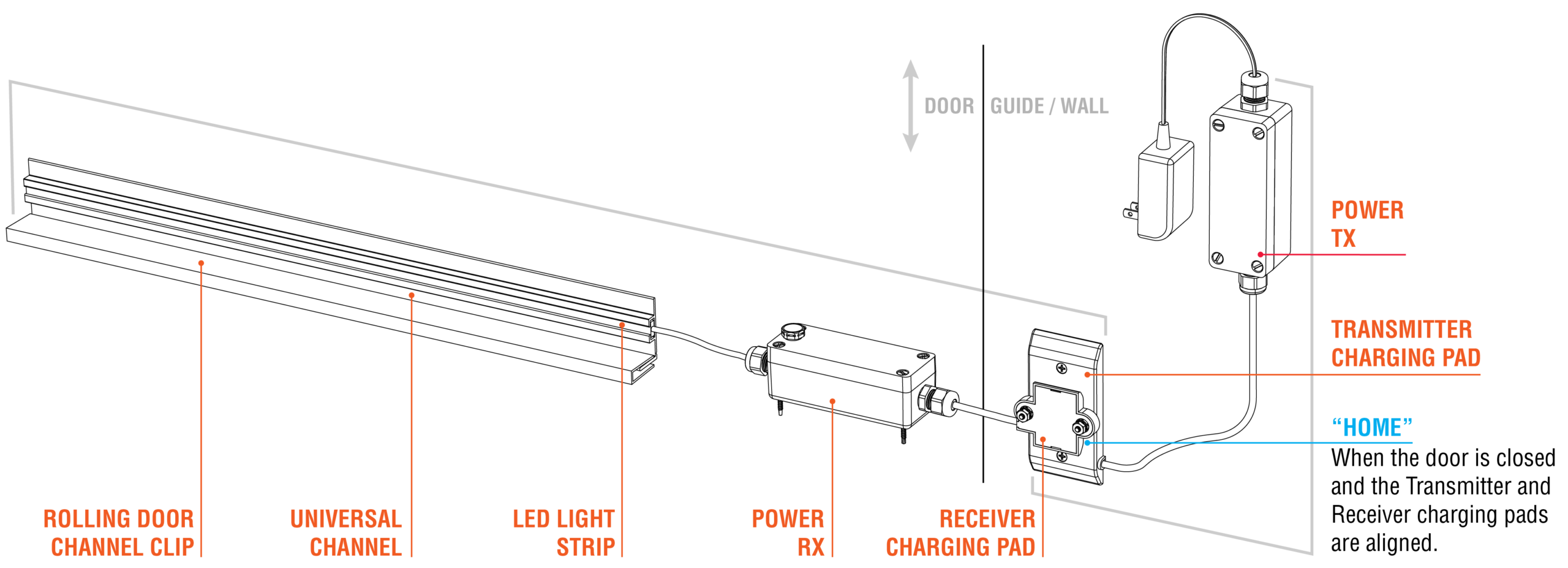

- LED-PHXRS-K8: Rolling Steel Door Kit
- LED-PHXSD-K8: Sectional Door Kit
- Interior-mounted design: Perfect for high-traffic areas like warehouses and manufacturing floors.
- Integrated accelerometer: Operates independently of the door operator.
- Inductive charging pads: No coil cords; recharges when door is closed.
- Plug-and-play upgrade: Seamlessly integrates with photo eyes or light curtains.
- Long runtime: Up to 60 hours or ~100 door cycles per charge.
- Bright LEDs: Indicate door status at a glance.
- 2-year warranty
Resources
Models
- LED-PHXRS-K8: Phoenix Rolling Steel Door Kit
- LED-PHXSD-K8: Phoenix Sectional Door Kit
| LED STRIP | ||
| Brightness | Red = 80 lumens/m, Green = 220 lumens/m | |

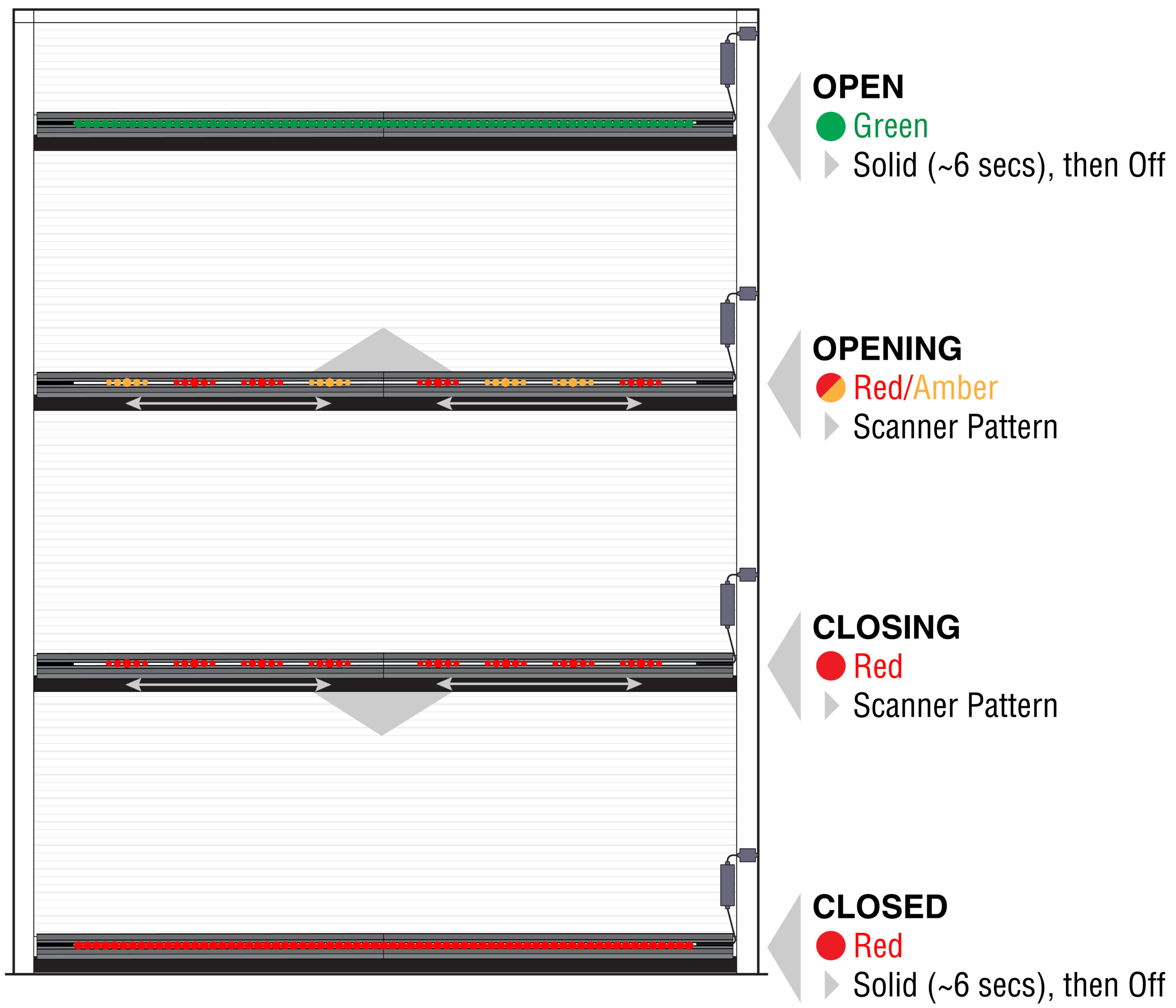

| Signaling | Red/yellow scanner pattern: Opening
Solid green ~6 secs: Open |
Red scanner pattern: Closing
Solid red ~6 secs: Closed |
| Lifespan | 30,000 hours | |
| PERFORMANCE | ||
| Runtime | Up to 60 hours of runtime or ~100 door cycles per charge | |
| Activation | Motion via accelerometer | |
| Operating Temperature | Charge: 32º to 113ºF (0º to 45ºC), Discharge: -4º to 140ºC (-20º to 60ºC) | |
| Agency Approvals | FCC | |
| ELECTRICAL | ||
| Power Source | Receiver: 3.7V 800 mAh lithium-ion battery | |
| Transmitter Power Supply: | Input: 100-240VAC 50/60 Hz, Output: 5VDC 1.5A | |
| Charging | Inductive; full charge in 6-8 hours | |
| Battery Charge Current | 100 mA nominal | |
| Power Output (TX) | 5V, 1500mA | |
| PHYSICAL | ||
| Dimensions | LED Strip/Mounting Channel: 8-ft. (2.44 m)
Power RX & TX Enclosures: 1-13/16 W x 5-3/4 H x 1-3/4 D in. (46 x 146 x 44 mm) |
|
| Cable Lengths | LED Strip: 48-in. Power RX g Receiver: 19.5-in. |
Transmitter g Power TX: 18-in.
Power TX g Power Supply: 55.5-in. |
| Weight (door mounted components) | LED Strip: 6.56 oz.
Mounting Channel: 9.21 (SD), 14.41 oz. (RS) |
Power RX, Receiver with battery: 7.6. oz.
Receiver Brackets: 5.01 (SD), 16.01 oz. (RS) |
| Material | LED Strip: UV protected silicone sheath
Mounting Channels: High density rigid PVC |
Power RX & TX Enclosures: Polycarbonate
Mounting Brackets: Steel |
| LED Indicators | Power RX: Green, Yellow | Power TX: Green, Yellow |
| Mounting | LED-PHXRS-K8 (rolling steel door kit):
|
LED-PHXSD-K8 (sectional door kit):
|
| Degree of Protection | LED Light Strip: IP68 | Power RX & TX Enclosures: NEMA 4 |
|
|
|
|
|
|
|
|
Electrical Components, Edge Testers |
