Single-Channel Wireless System

MWRT12B, MWRTA12B

NON-MONITORED WIRELESS EDGE SOLUTION

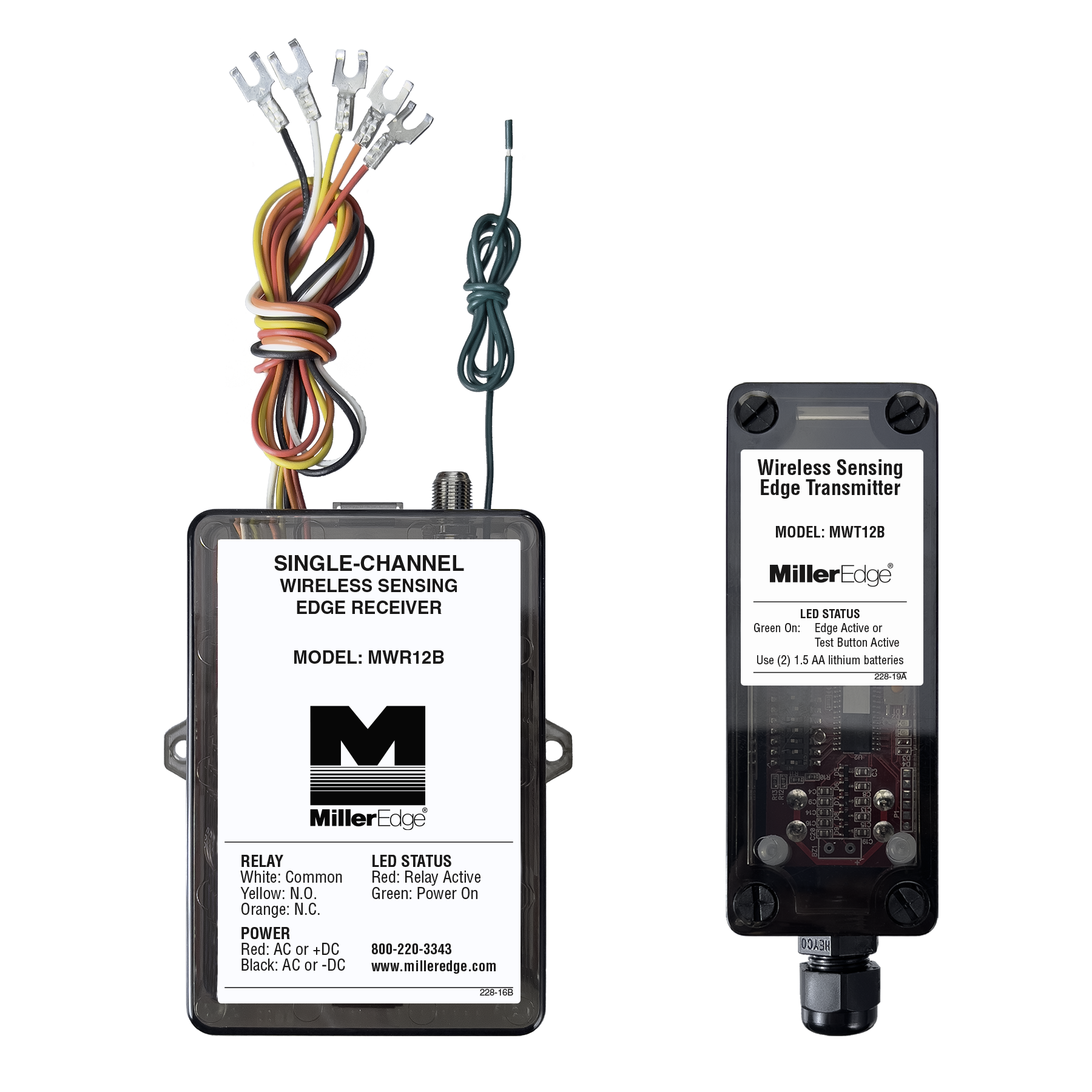

Avoid visible cords and reels with this non-monitored single-channel edge system. Designed to provide a wireless signal transmission from the sensing edge to motor controls, this reliable system has on-board diagnostics for easy setup and troubleshooting. The transmitter comes standard with a NEMA 4 weather-proof enclosure and both the receiver and transmitter have a compact design that allow for easy troubleshooting via the transparent cases. The transmitter is available with an optional audible alarm that activates when the battery has 25% of its life remaining.

Applications

Motorized doors
Automated gates

Features

Easy to configure
Non-monitored system ideal for operators manufactured prior to:
Doors: August 2010
Gates: January 2016
NEMA 4 transmitter built to endure rugged environments
2-year warranty

General Specifications

PERFORMANCE
Response Time	70 milliseconds
Operating Temperature	0°F to 130°F (-18°C to 55°C)
Frequency	318 MHz
Operating Range	100 ft. (optimal conditions)
Coding	Selectable 9 pole, 2 position DIP switch
Agency Approvals	FCC

	MWR12 RECEIVER	MWT12 TRANSMITTER	MWTA12 TRANSMITTER
ELECTRICAL
Power Source	12-24 volts AC/DC nominal Nominal 60 mA, 140 mA activated	(2) 1.5 volts AA alkaline batteries, 2-year expectancy	(2) 1.5 volts AA lithium batteries, 2-year expectancy
Input/Output	Output: N.O., N.C.	Input: 2-wire N.O. sensing edge	Input: 2-wire N.O. sensing edge

PHYSICAL

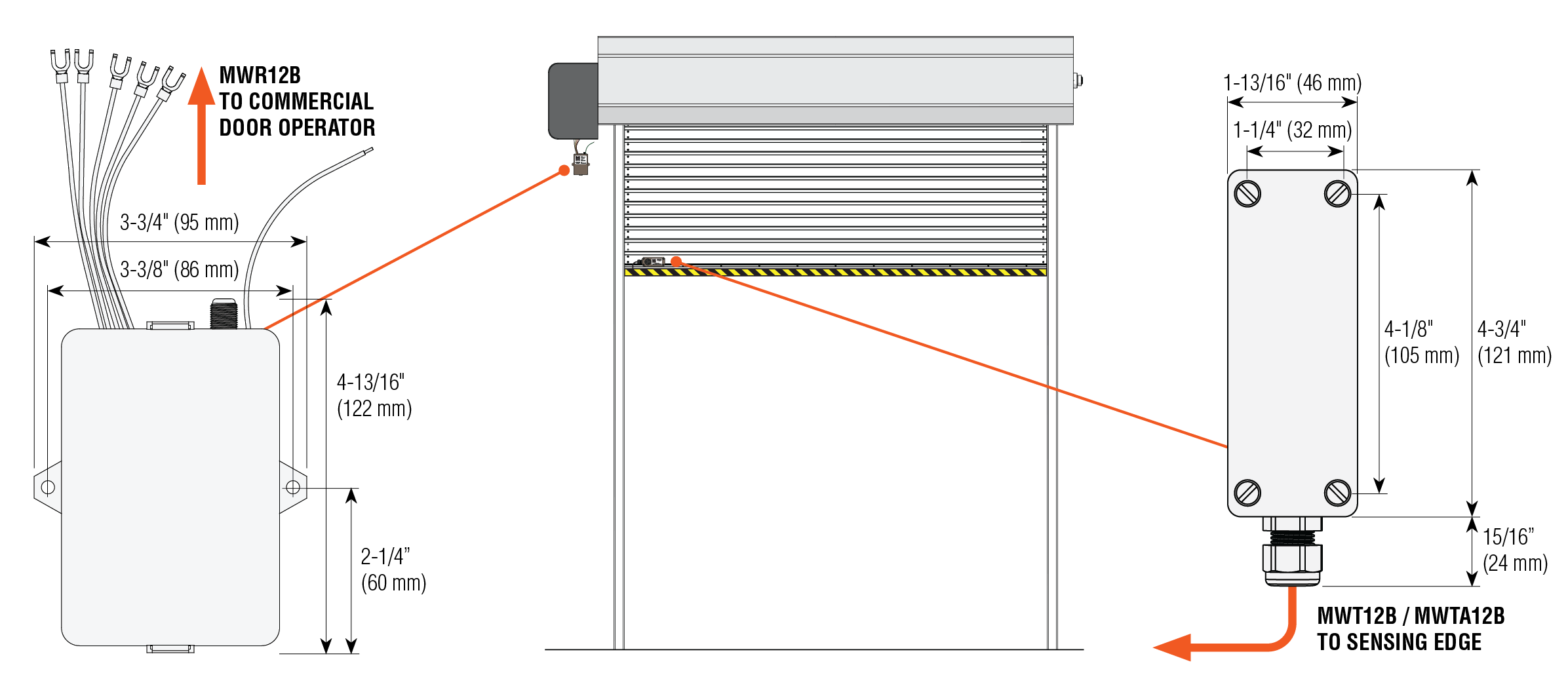

Dimensions	3-3/4”W x 4-13/16”H x 1-1/4”D (95 x 122 x 32 mm)	1-13/16”W x 5-3/4”H x 1-3/4”D (46 x 146 x 44 mm)	1-13/16”W x 5-3/4”H x 2-1/8”D (46 x 146 x 54 mm)
Weight	4.6 oz.	7.2 oz.	7.2 oz.
Enclosure Material	Polycarbonate	Polycarbonate	Polycarbonate
TX Low Battery Alert	–	–	Alarm: 80-95 dB at 2’
LED Indicators	Power, status, channel 1	Transmit	Transmit
Antenna	Attached wire or F connector	–	–
Degree of Protection	–	NEMA 4	NEMA 4
