MONITORED WIRELESS EDGE SOLUTION

RBand is a monitored wireless transmitter/receiver system that eliminates the need to hard wire sensing edges. The RBand receiver can be paired with up to three transmitters per channel (model dependent). The transmitter is built to endure rugged, outdoor environments. The RBand system features automatic channel switching and auto adjusting transmitter power regulation, helping boost signals and improve reliability, even in harsh RF environments. Models available for compatibility with most door and gate operators.

Applications

  • Motorized doors
  • Automated gates
  • Custom applications

Features

  • Three models for operator compatibility:
    • RB-G-K10 Output (receiver): 10K, N.C. Input (transmitter): 10K (T2) monitored edge
    • RB-P-K10 Output (receiver): Pulsed, N.O. Input (transmitter): 10K (T2) monitored edge
    • RB-P-K20 Output (receiver): Pulsed, N.O. Input (transmitter): Diode capacitor (DC) (T3) monitored edge
  • Monitored system ideal for:
    • Motorized door operators manufactured after August 2010
    • Automated gate operators manufactured after January 2016
  • Easy to configure
  • Bi-directional link improves immunity to RF interference
  • Receiver is compatible with up to three wireless transmitters
  • On-board diagnostics for easy setup/troubleshooting
  • Transmitter built to endure rugged environments
  • UL 325 Recognized Component
  • 2-year warranty

Resources

Sell Sheet
RB-G-K10 Installation Instructions
RB-P-K10 Installation Instructions
RB-P-K20 Installation Instructions
RB-G-K10 Introduction Video
RB-G-K10 Installation Video

PERFORMANCE


Response Time 135 milliseconds
Operating Temperature -40°F to +140°F (-40°C to +60°C)
Frequency 916 MHz
Operating Range 50’ (15.25 m) nominal; 100’ (30 m) maximum optimal conditions
Agency Approvals FCC


ELECTRICAL


Power Source Receiver: 12-24 volts AC/DC nominal, 100 mA maximum
  Transmitter: (2) AA, 3.6 volts lithium, 2-year expectancy


PHYSICAL


Dimensions Receiver: 3-5/8 W x 4-1/8 H x 1-5/8 D in. (93 x105 x 42 mm)
  Transmitter: 1-13/16 W x 5-3/4 H x 1-3/4 D in. (46 x 146 x 44 mm)
Weight Receiver: 5.25 oz., Transmitter: 4.5 oz.
Enclosure Material Receiver: Steel, Transmitter: Polycarbonate
Low Battery Alarm Receiver: Alarm
Degree of Protection NEMA 4 (transmitter)

MODELS

RB-G-K10

RB-P-K10

RB-P-K20
Input/Output

Input (transmitter): 10K (T2)

Output (receiver): 10K, N.C.

Input (transmitter): 10K (T2) monitored sensing edge monitored sensing edge

Output (receiver): Pulsed, N.O.

Input (transmitter): Diode capacitor (DC) (T3) monitored sensing edge

Output (receiver): Pulsed, N.O.
Channels 2 1 1
LED Indicators Receiver: Channel 1-3,
Pre-Start Test, CheckTransmitter: Transmit

Receiver: Channel 1-2, Check

Transmitter: Transmit

Receiver: Channel 1-2, Check

Transmitter: Transmit
Transmitter Antenna External whip antenna with F connector Attached wire connector Attached wire

+ OPTIONS

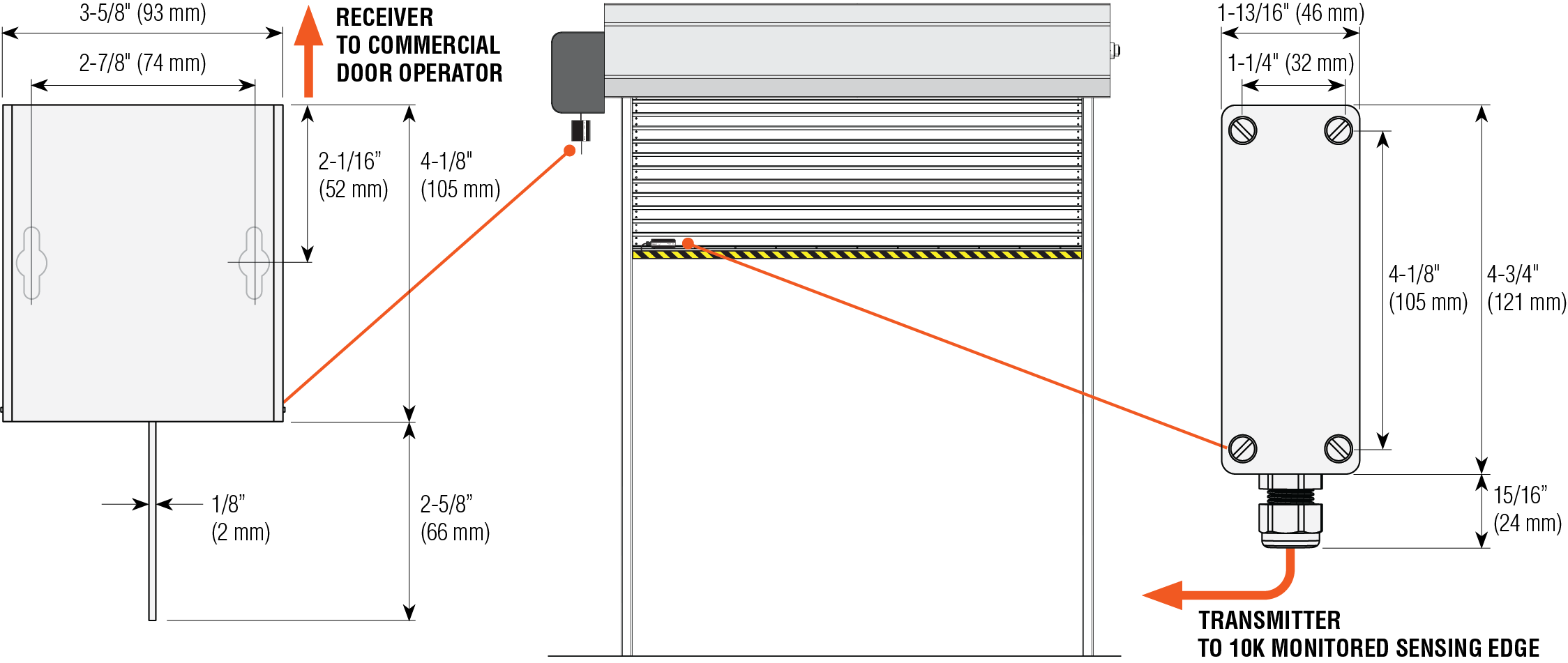

RB-P-K10

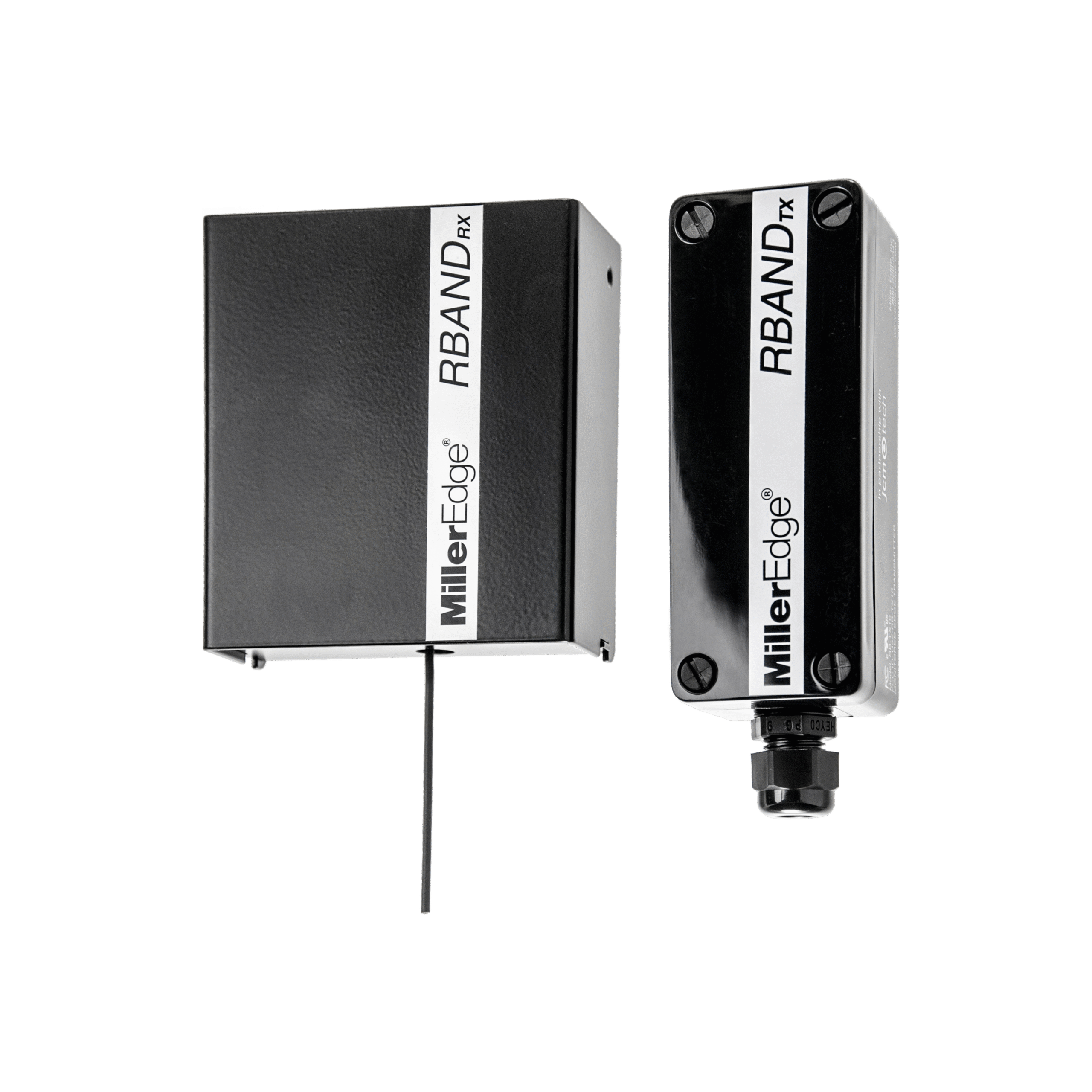

RB-P-K10 Output (receiver):

Pulsed, N.O. Input (transmitter): 10K (T2) monitored edge

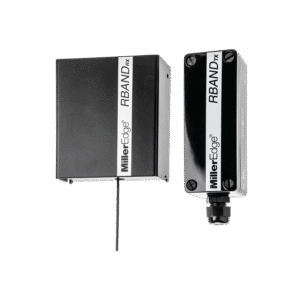

 RB-P-K20

RB-P-K20 Output (receiver):

Pulsed, N.O. Input (transmitter): Diode capacitor (DC) (T3) monitored edge

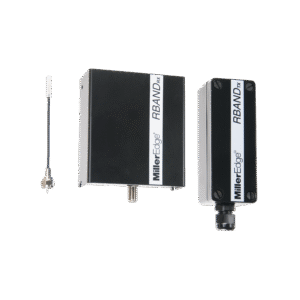

 RB-G-K10

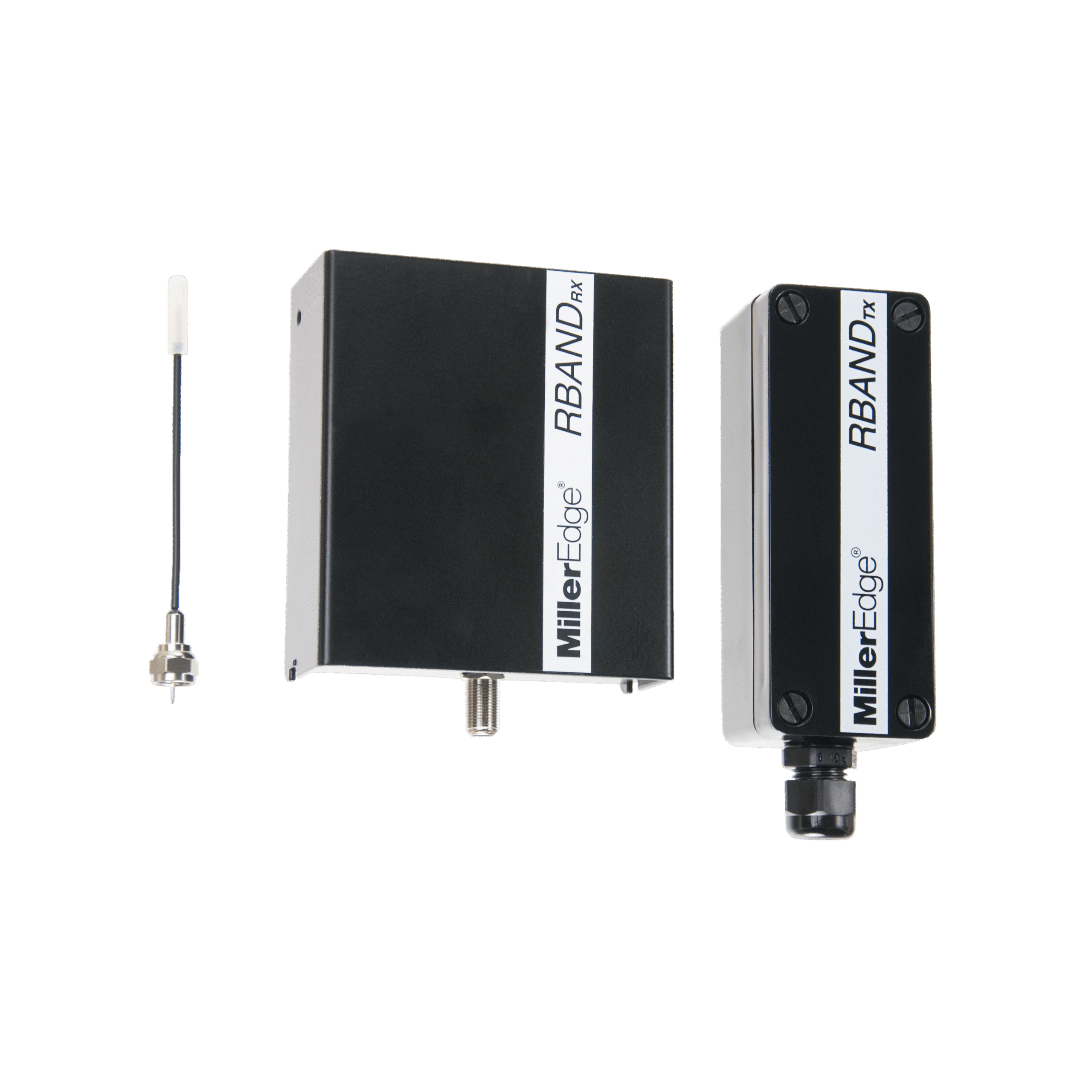

RB-G-K10 Output (receiver):

10K, N.C. Input (transmitter): 10K (T2) monitored edge
RB-TX10

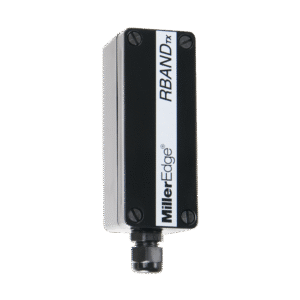

RB-TX10: RBand transmitter

Pair up to six transmitters to two channels with RB-G-K10. Pair up to three transmitters to one channel with RB-P-K10

 RB-TX20

RB-TX20: RBand transmitter

Pair up to three transmitters to one channel with RB-P-K20

 Batteries

226-9313: 3.6V AA Lithium Batteries

(2) 3.6V Required for RBand Transmitter

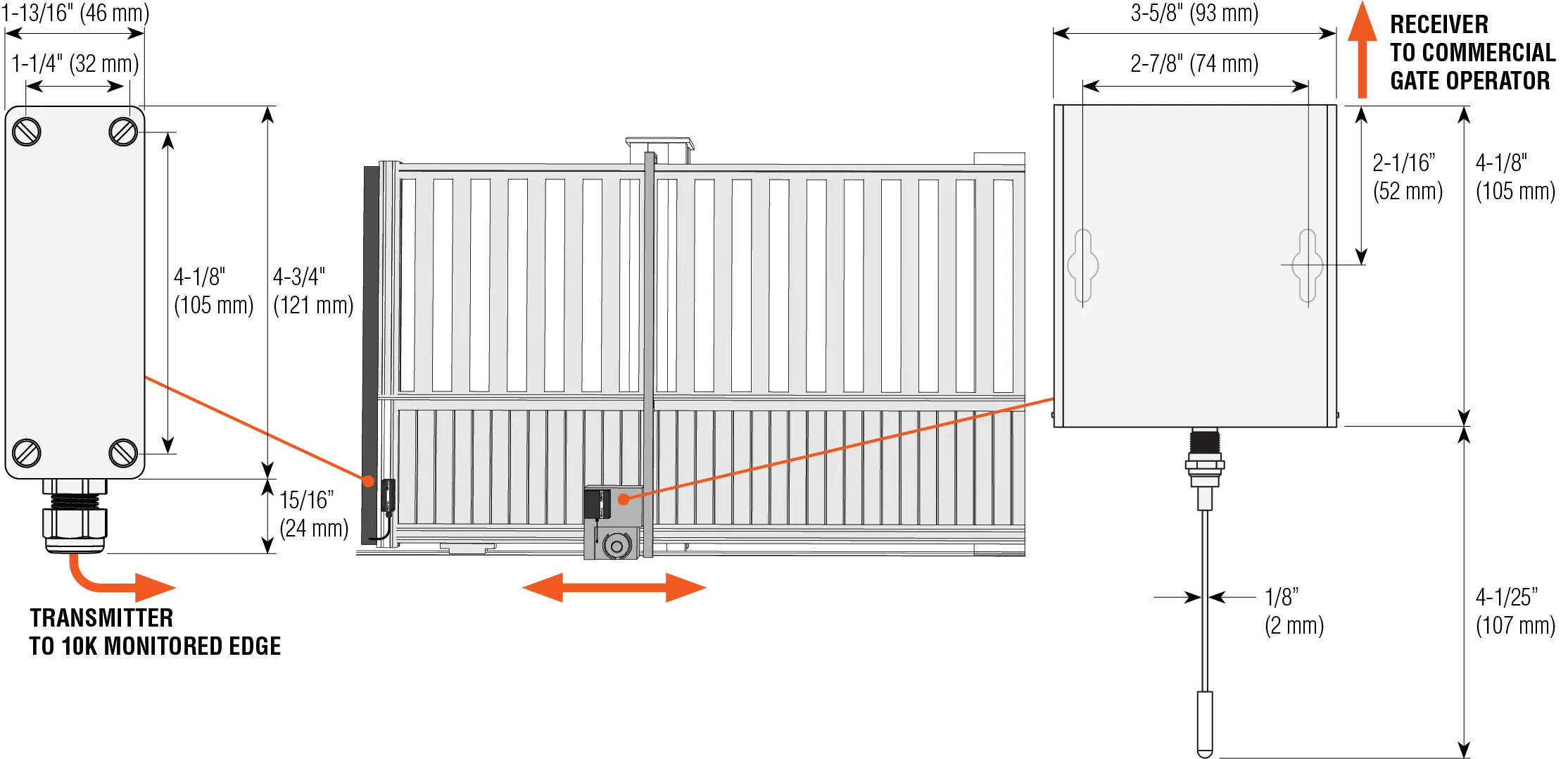

RBGK10_Installation
