Interface Modules
Miller Edge interface modules play an important role in facilitating communication between different types of devices and systems, allowing them to work together to expand a systems’ offerings and providing compatibility.

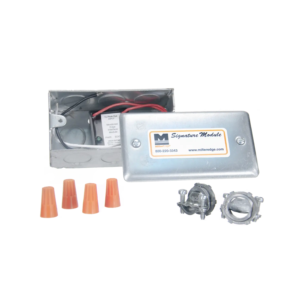

Signature Module
SM-10x
USE WITH
Sensing edge and photo optic monitored configurations:
10K resistive
Diode capacitor
DESCRIPTION
Convert a monitored device to a pulsed output as required by the operator:
• SM-101: Converts a diode capacitor device
• SM-102: Converts a 10K resistive device
APPLICATION
Commercial Motorized Doors

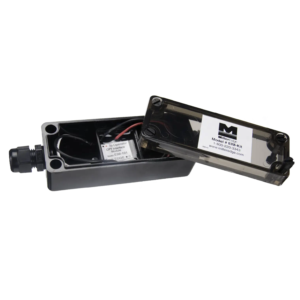

Electrical Interface
Module
EIM-101
USE WITH
Sensing edges:
CPT models
DESCRIPTION
Allow for use of CPT series edges on relay logic operators by converting a high resistance input to a positive, normally open, dry contact output for pre-2010 commercial door operators
APPLICATION
Commercial Motorized Doors
Automated Vehicular Gates

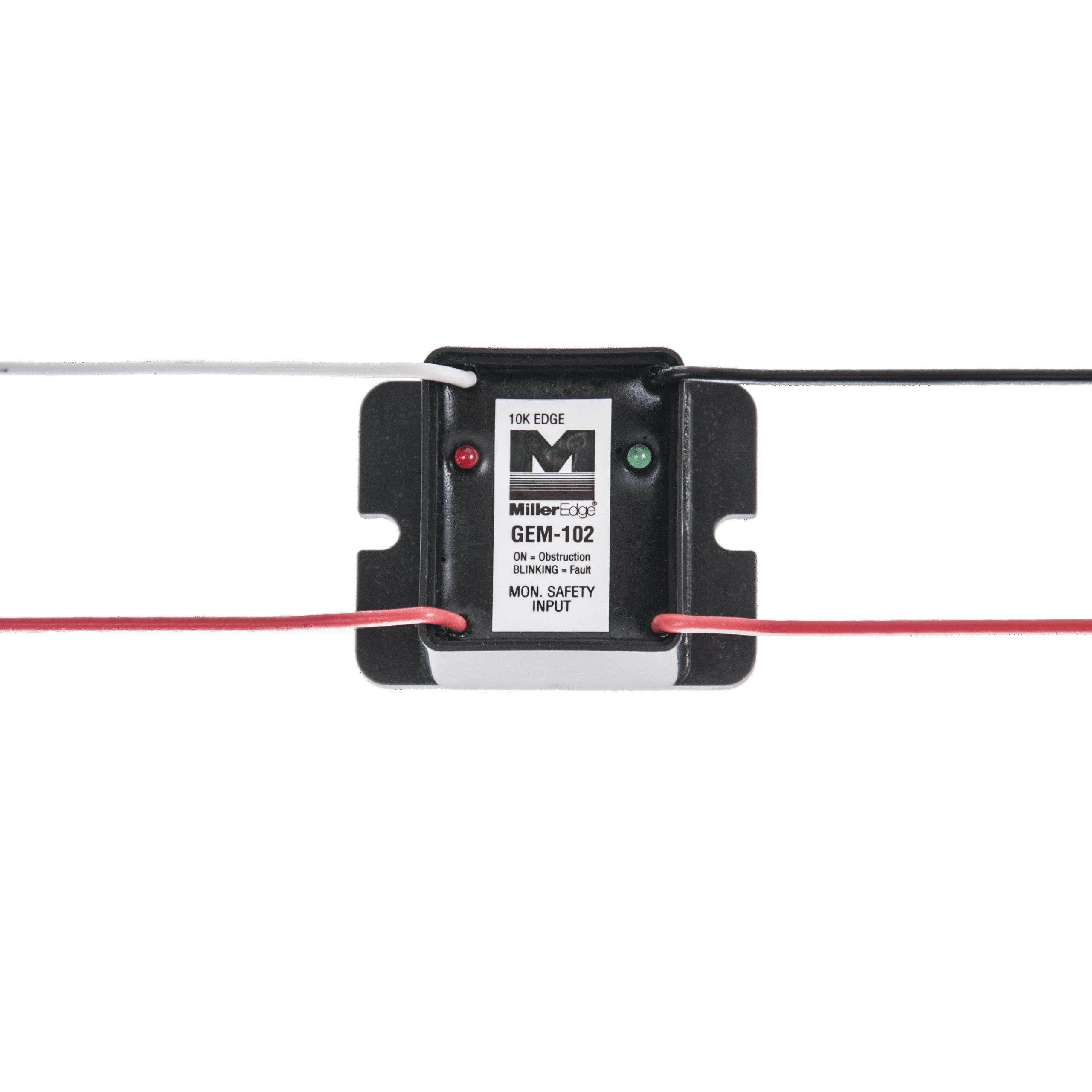

Gate Edge Module
GEM-10x
USE WITH
Sensing edges:
10K resistive monitored configurations
DESCRIPTION
Convert a 10K resistive sensing edge to the signal required by a gate operators:
• GEM-102: Converts a 10K device to 2-wire pulsed signal
• GEM-103: Converts a 10K device to 4-wire pulsed signal
• GEM-104: Converts a 10K device to normally closed signal
APPLICATION
Automated Vehicular Gates

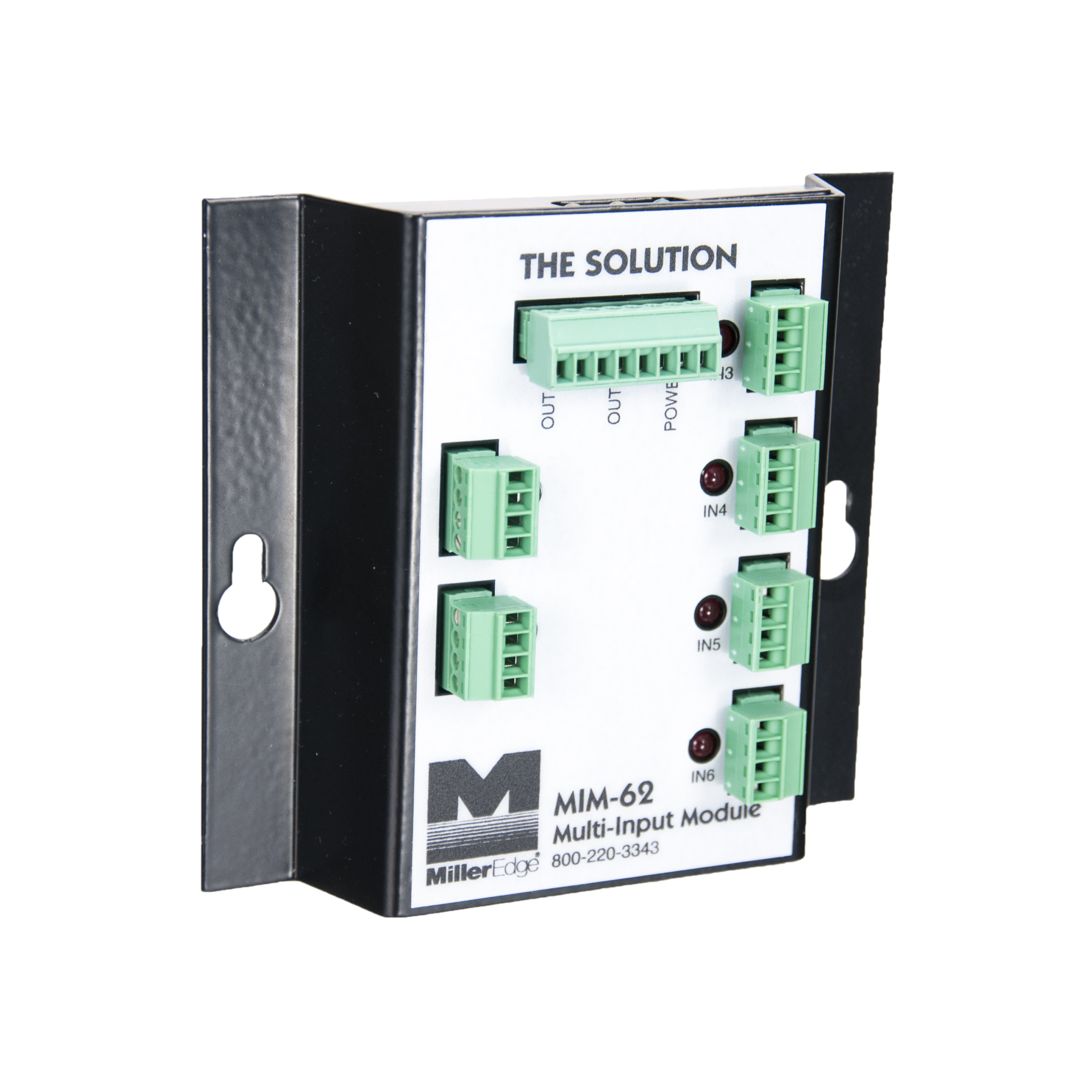

Mult-Input Module
MIM-62
USE WITH
Sensing edges
Photo optics
DESCRIPTION
Expand gate operator interface by six additional inputs for entrapment zone safety devices
APPLICATION
Automated Vehicular Gates

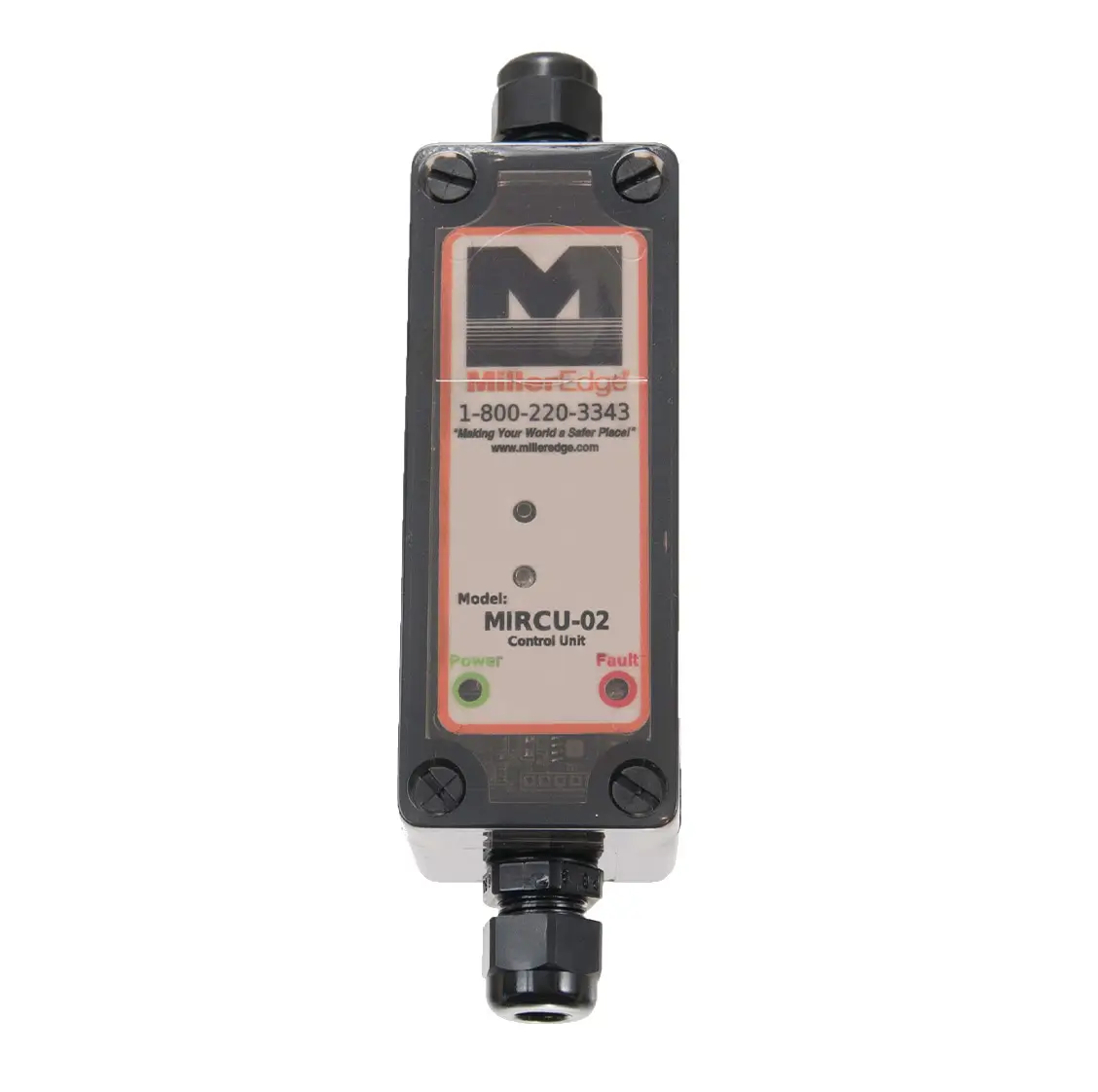

Infra-Red Control Unit
MIRCU-02
USE WITH
Photo optics
DESCRIPTION
Convert a monitored photo optic signal to non-monitored signal
APPLICATION
Commercial Motorized Doors
Automated Vehicular Gates
Questions? Contact us today for more information about safeguarding solutions.
