Monitored Light Curtain

MLC

AN INVISIBLE BLANKET OF PROTECTION

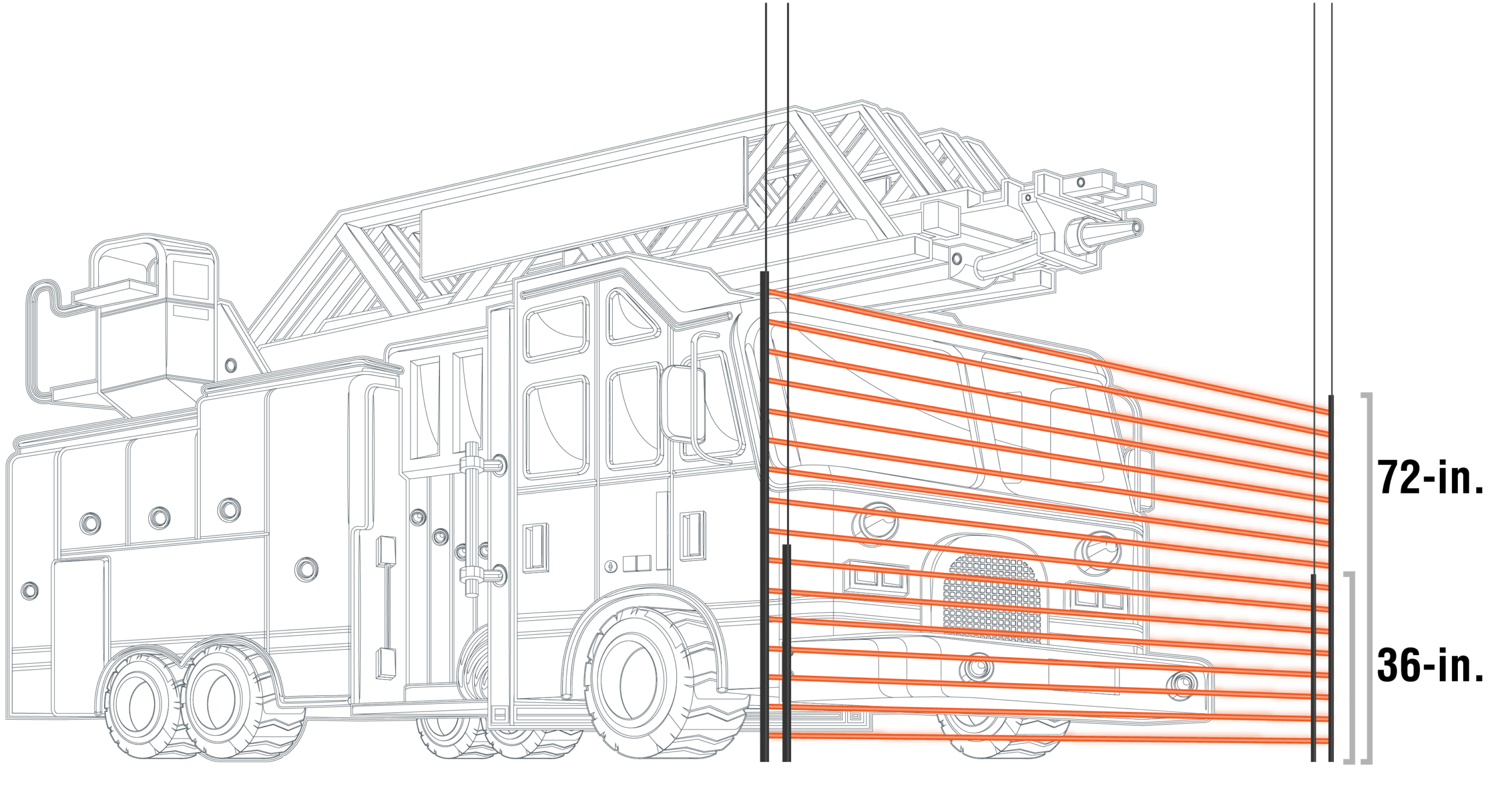

The Miller Edge Monitored Light Curtain is made up of a series of thru-beam photo eyes designed to provide a dense barrier of protection while being monitored for presence and function by the door operator. When interrupted, a signal is sent to the door operator to reverse operation. Light curtains are ideal for environments that require expanded protection for protruding parts that may not be detected by a standard single-beam photo eye mounted 6 inches from the floor. This UL 325 compliant monitored device has the ability to span up to 32 feet wide and comes in 3-foot and 6-foot models.

Applications

Motorized doors
High-speed doors

Features

Two models:
- MLC-K36: 3 ft., 8 elements
- MLC-K72: 6 ft., 16 elements
32 ft. operating range
Monitored entrapment device ideal for commercial door operators manufactured after August 2010
Simplified wiring; no external interface box
LED indicators for easy setup and diagnostics
Thru-beam technology minimizes false
reflective signals
Universal mounting brackets included
UL 325 Recognized Component
IP67 waterproof housing
2-year warranty
