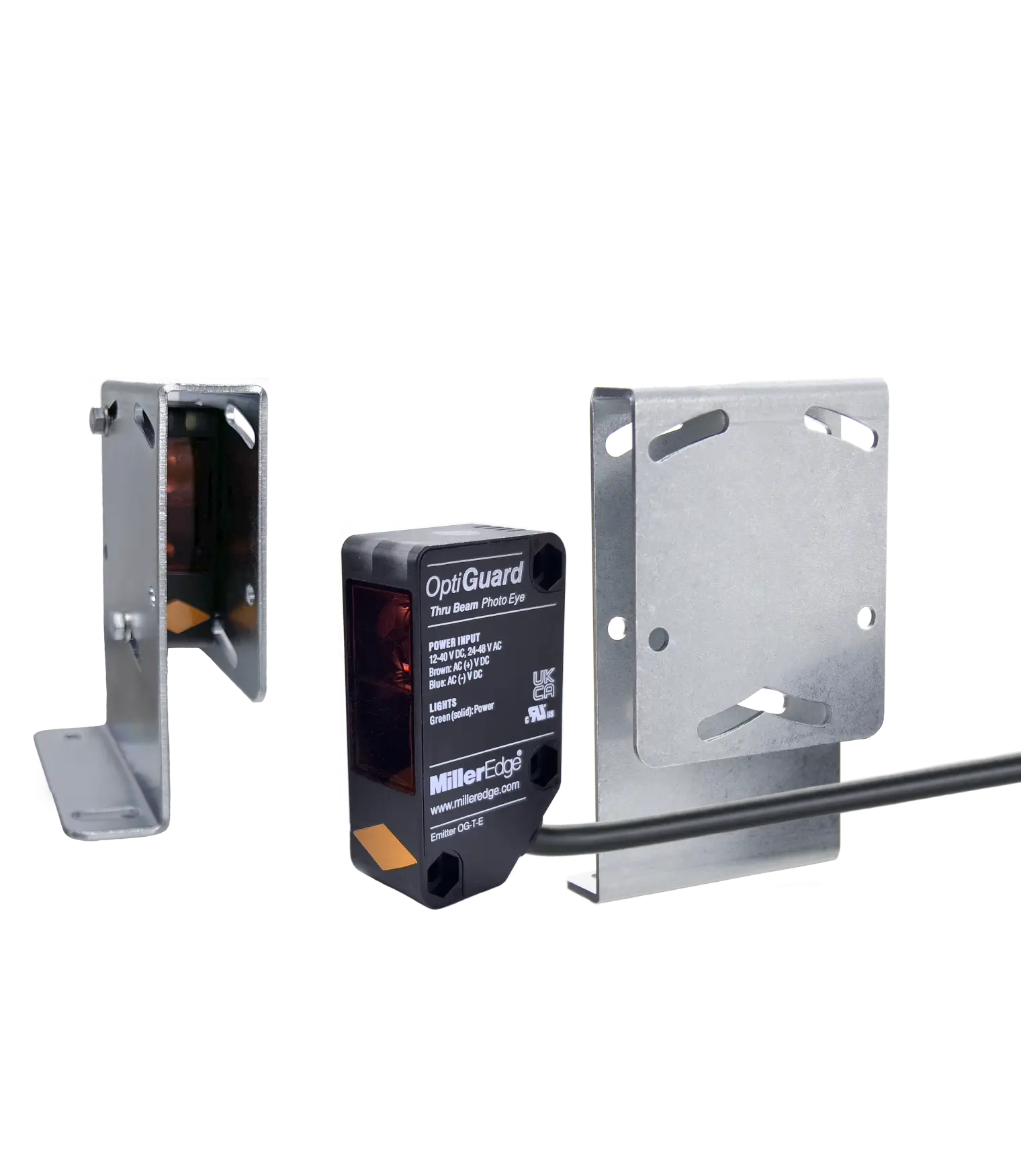

OptiGuard™

OG-T

MONITORED THRU-BEAM PHOTO EYE

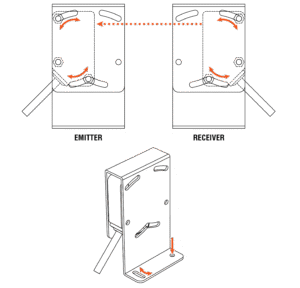

The Miller Edge OptiGuard™ monitored photo optic system provides thru-beam entrapment protection for door and gate operators. The emitter and receiver can be mounted vertically or horizontally to meet your safeguarding needs. When an obstruction interrupts the beam, a signal is sent to motor controls to stop and/or reverse motion. The durable mounting bracket/hoods offer additional protection against debris and serve as a weather and sun shield. Key components include an operating range of 100 feet and easy alignment through a visible beam of light.

Applications

Automated gates

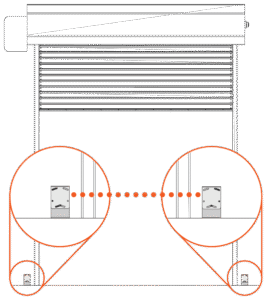

Motorized doors

Features

100 ft. range
Normally closed and 10K outputs
Pulsed kit available for specific operator compatibility
Emitter and receiver can be mounted vertically or horizontally
Durable mounting bracket/hoods provide added protection against debris and serves as weather and sun shields
Optional Photo Eye Conduit Enclosure Kit (PE-CON-K10) accessory for ¾” conduit
IP67 housing protects against moisture and dust
UL 325 Recognized Component
2-year warranty
