Light Curtain–DUO

MLC-DUO

AN INVISIBLE BLANKET OF PROTECTION

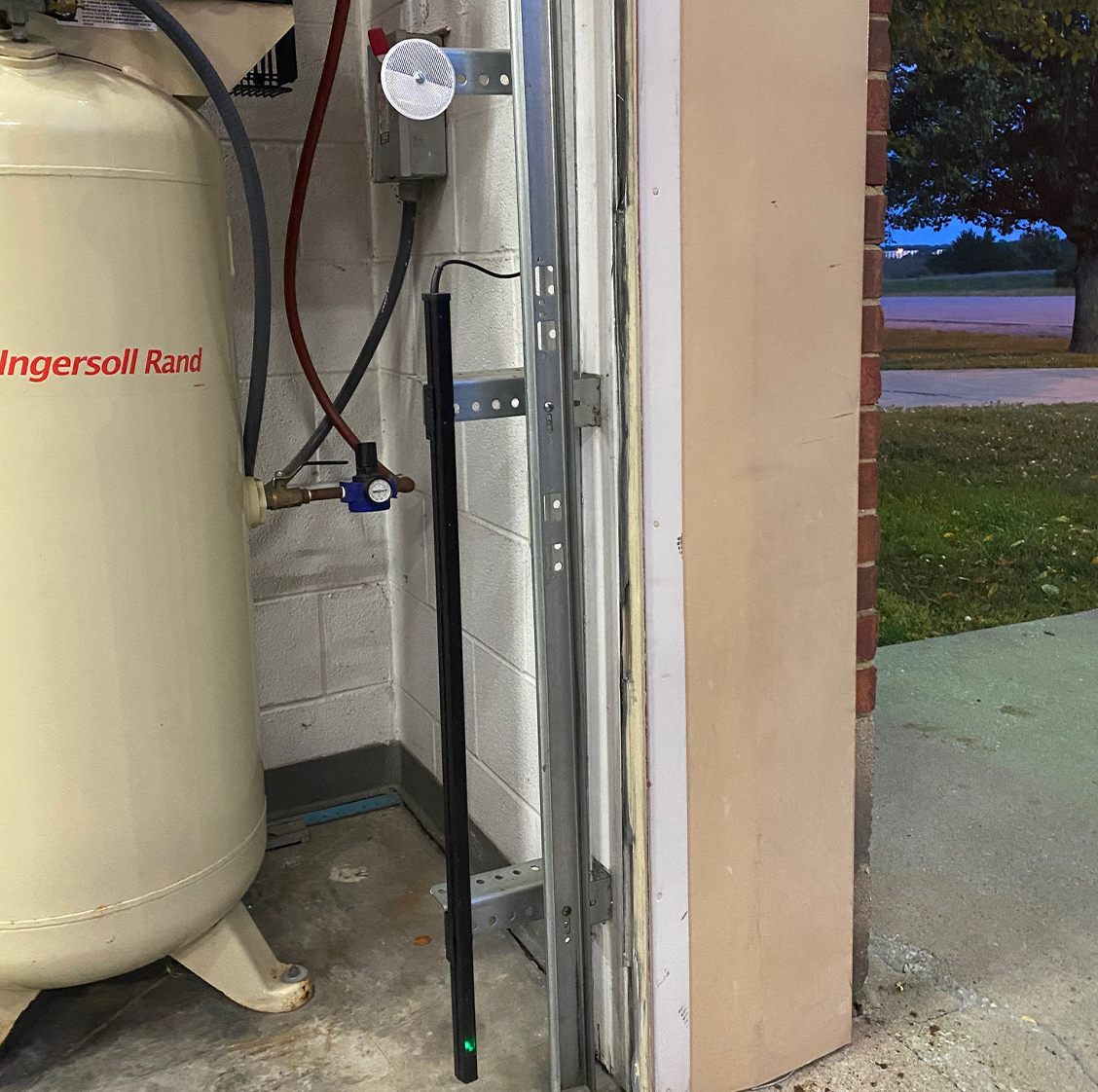

The Miller Edge Light Curtain–DUO combines expanded operator compatibility with reliable entrapment protection. Featuring a Dual Universal Output, a single system can support pulsed monitored, normally open relay, and normally closed relay output configurations, simplifying specification, inventory, and installation while reducing complexity for installers. With a dense infrared detection field and a 32-foot operating range, the MLC-DUO helps protect people, equipment, and property in demanding commercial door applications.

Applications

• Motorized doors
• High-speed doors

Features

• Dual Universal Output supports:
  • 2-Wire pulsed monitored output
  • Normally open (N.O.) relay output
  • Normally closed (N.C.) relay output
• Two models:
  • MLC-K36-DUO: 3-ft. protection height, 8 elements
  • MLC-K72-DUO: 6-ft. protection height, 16 elements
• One device compatible with a wide range of commercial door operators
• 32 ft. operating range
• Dense thru-beam infrared detection field
• Simplified wiring and installation
• LED indicators for setup and diagnostics
• Universal mounting
  brackets and extension
  mounts included
• UL 325 Recognized
  Component
• 2-year warranty

Resources

Sell Sheet
Installation Instructions
