Introducing Light Curtain—DUO: Simplified Ordering, Expanded Compatibility

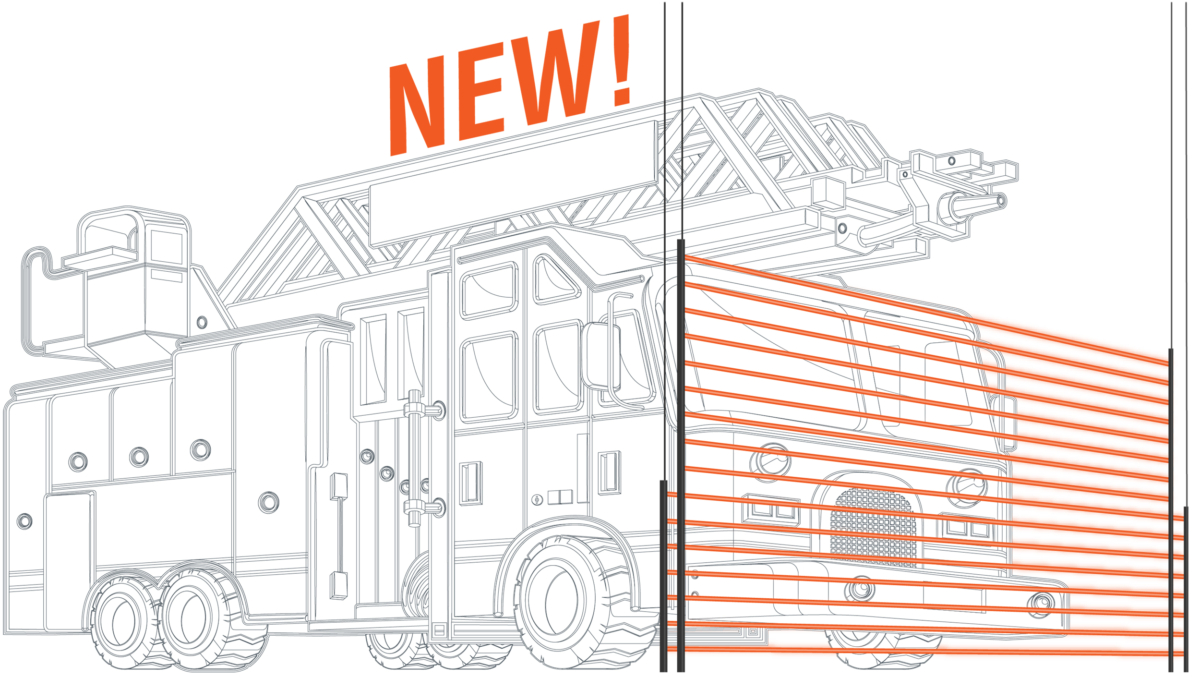

Miller Edge has introduced Light Curtain—DUO (MLC-DUO), the new generation of our commercial door light curtain product family. Designed to simplify product selection and inventory for door professionals, MLC-DUO combines output capabilities previously offered through separate MLC and RLC models into a single product.

One Light Curtain. Three Output Options.

DUO stands for Dual Universal Output. Each MLC-DUO supports three output configurations:

• Pulsed monitored
• Normally open (N.O.) relay
• Normally closed (N.C.) relay

By supporting monitored and relay applications in the same light curtain, MLC-DUO reduces the number of models dealers need to identify, order, and stock.

Two Models Replace Four

The new product family includes two models:

MLC-K36-DUO

8 optical elements

MLC-K72-DUO

16 optical elements

Together, these SKUs replace the previous: MLC-K36, RLC-K36, MLC-K72, and RLC-K72.

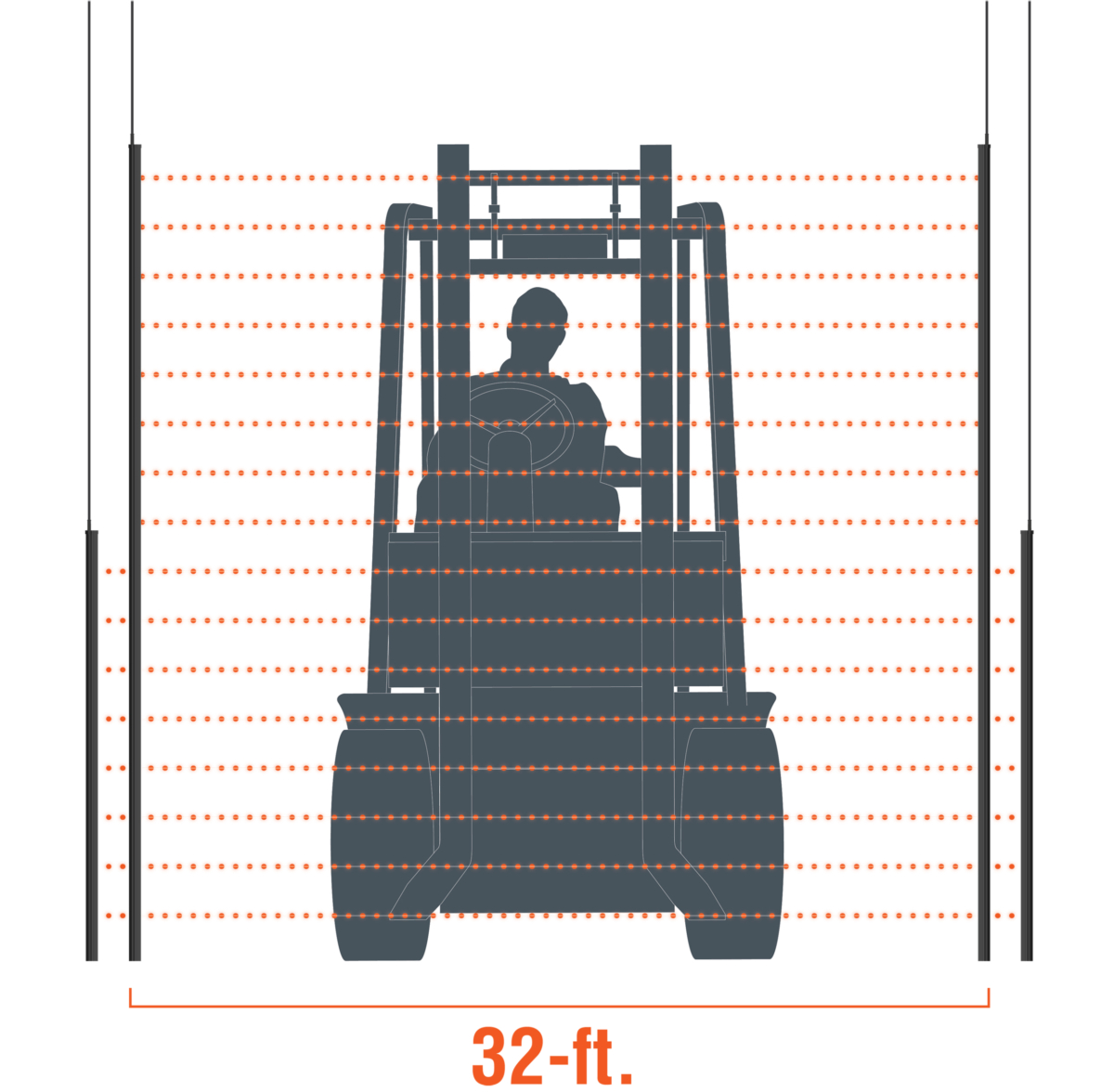

32-ft. Range
For commercial door applications

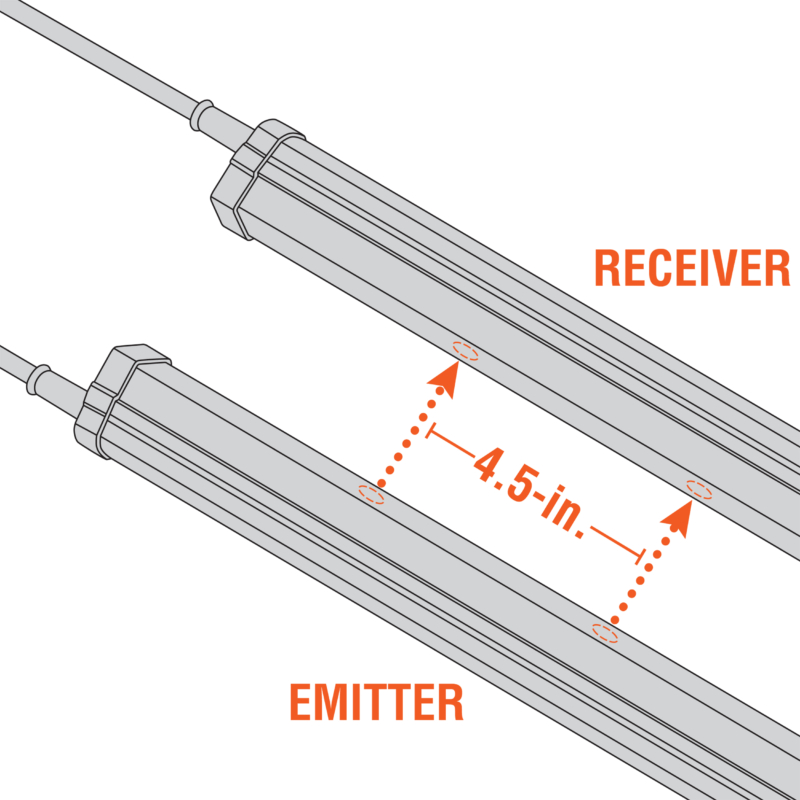

Dense Detection
Thru-beam infrared optical element detection field

Extended Non-Contact Detection

Light Curtain—DUO creates a dense thru-beam infrared detection field across the commercial door opening, providing extended vertical non-contact detection. It offers a 32-ft. operating range and is available in 3-ft. and 6-ft. protection heights.

Light Curtain—DUO is a UL 325 Recognized Component when used as a monitored entrapment device and carries a two-year warranty.

Designed for Straightforward Installation

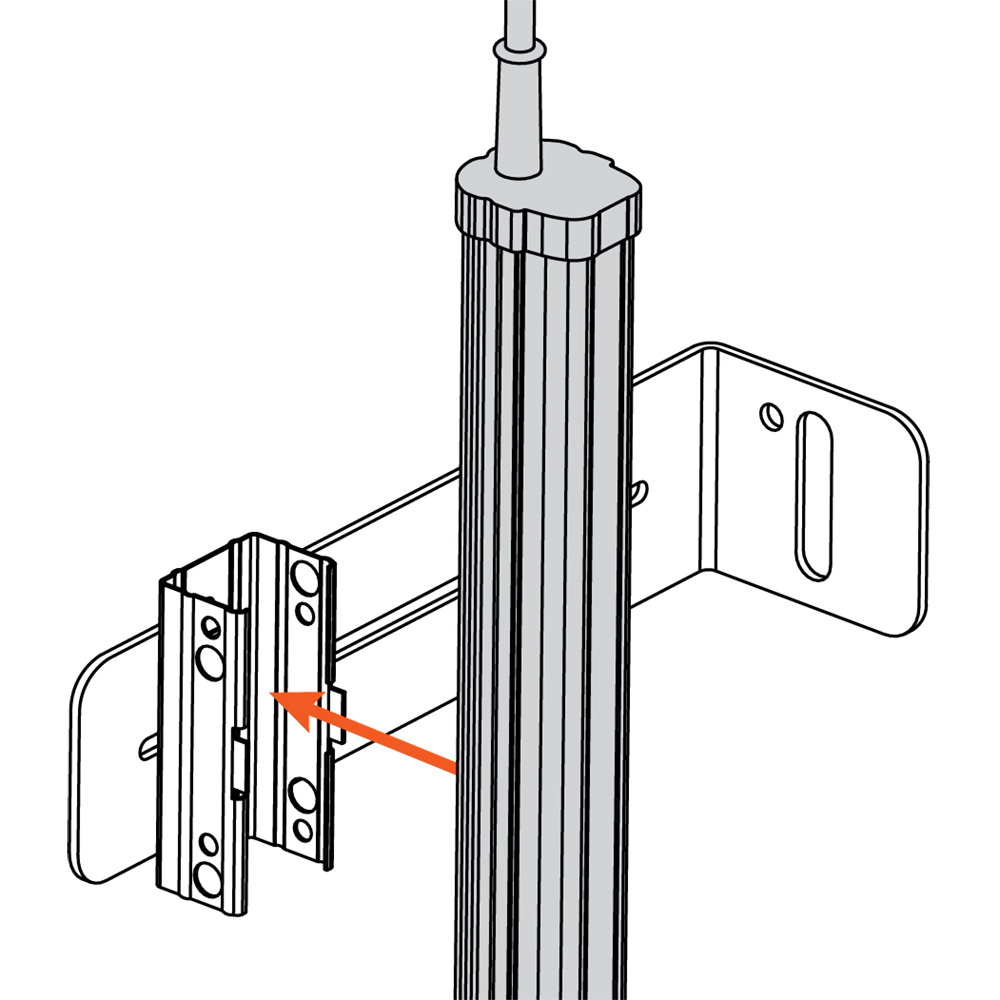

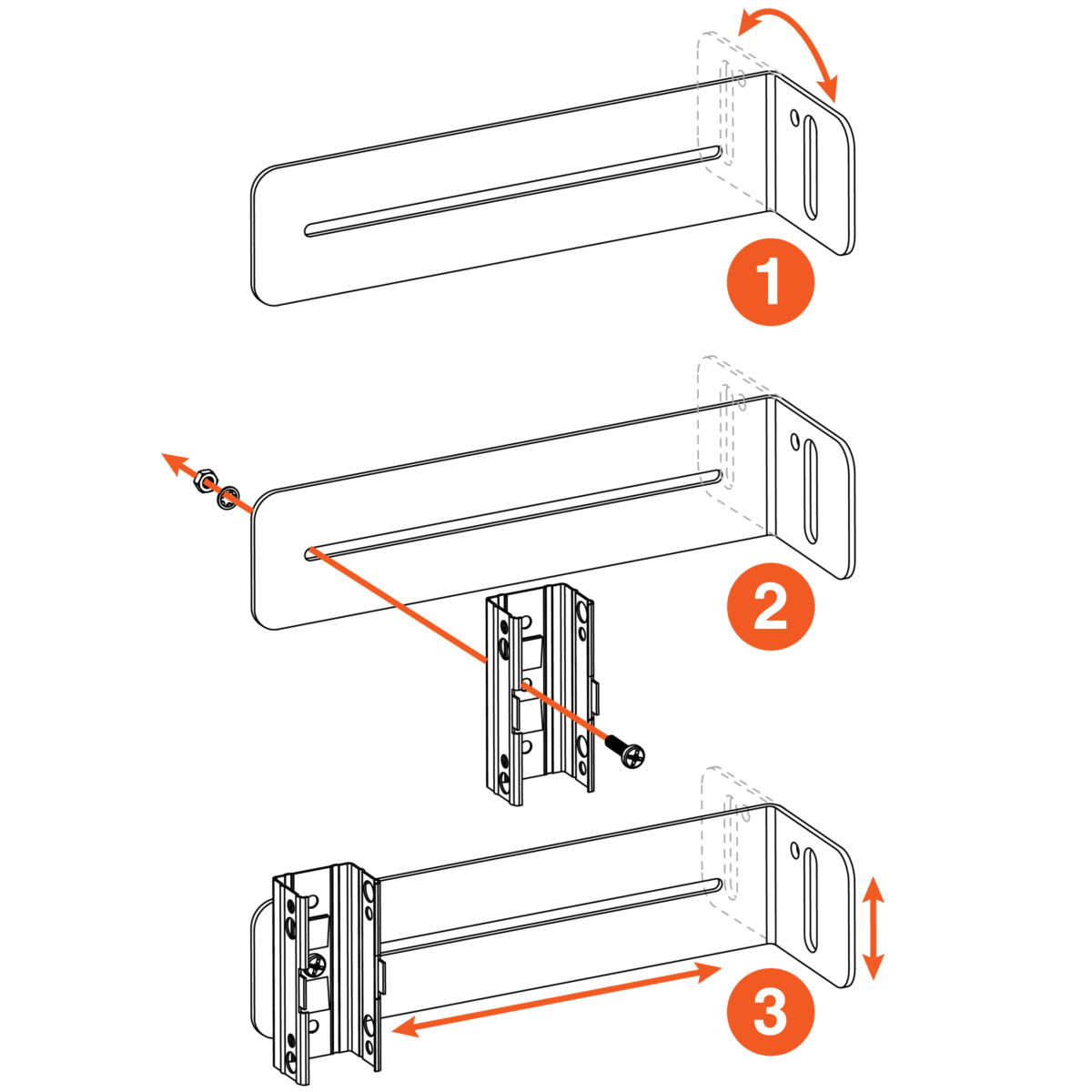

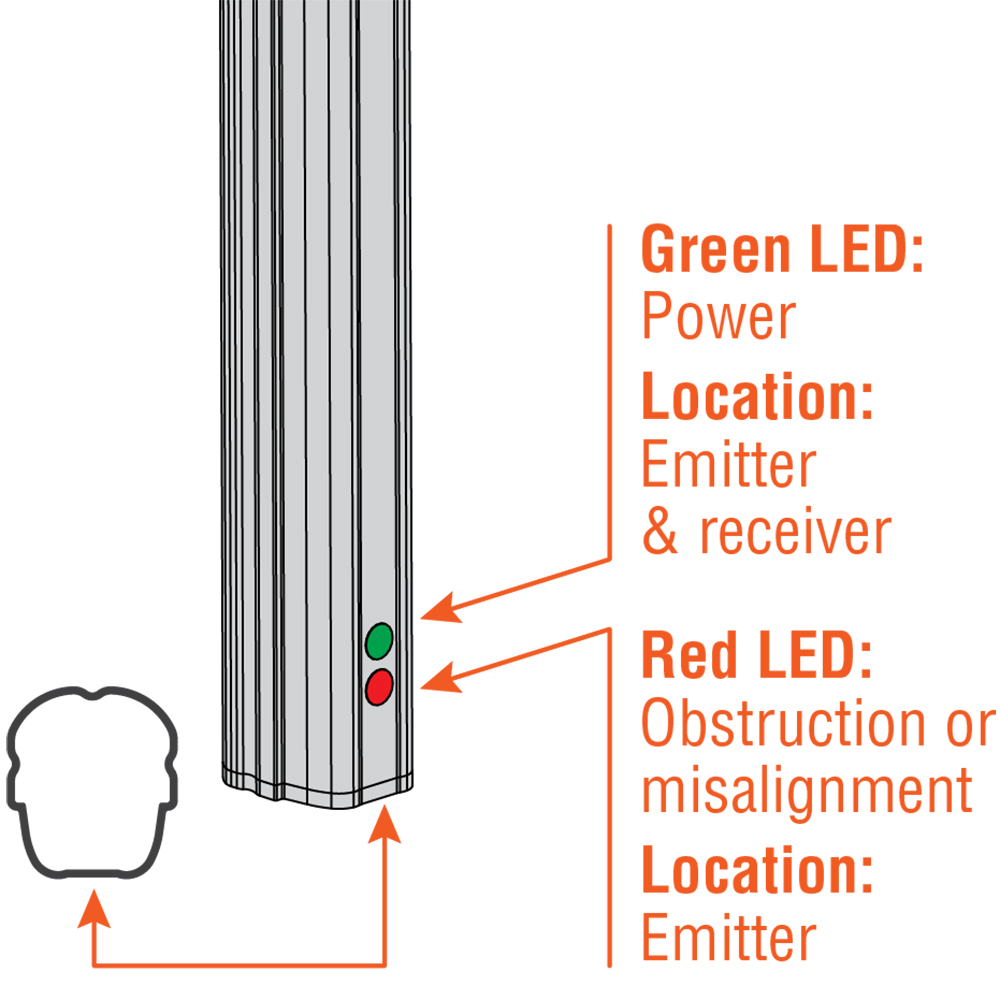

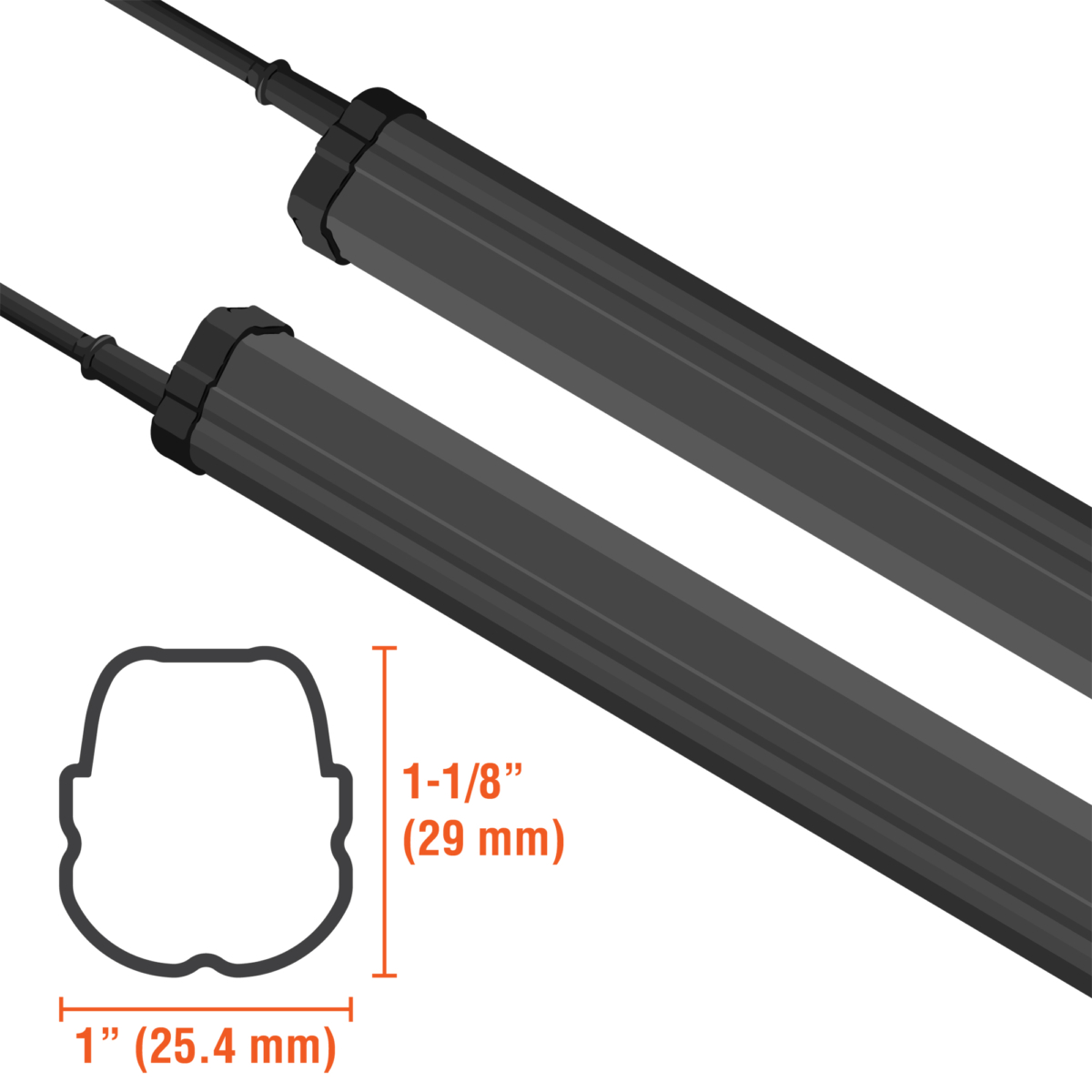

Light Curtain—DUO includes universal mounting brackets and extension mounts for flexible installation across a range of commercial door applications. The emitter and receiver snap into the mounting brackets, while integrated LED indicators help with setup and diagnostics.

For installation details, wiring configurations, and testing requirements, refer to the Light Curtain—DUO installation instructions.
