LED-ARIES

Dual-Sided Always-On LED Signaling

The Aries™ visual alert system enhances the visibility of commercial motorized sectional doors by integrating dual‑sided, always‑on LED lighting directly into the leading edge channel. Designed for 1‑3/4-in. to 2-in. thick sectional doors, Aries is compatible with Miller Edge ME123 or CPT215 sensing edges and the LS‑0107 weather seal (sold separately).

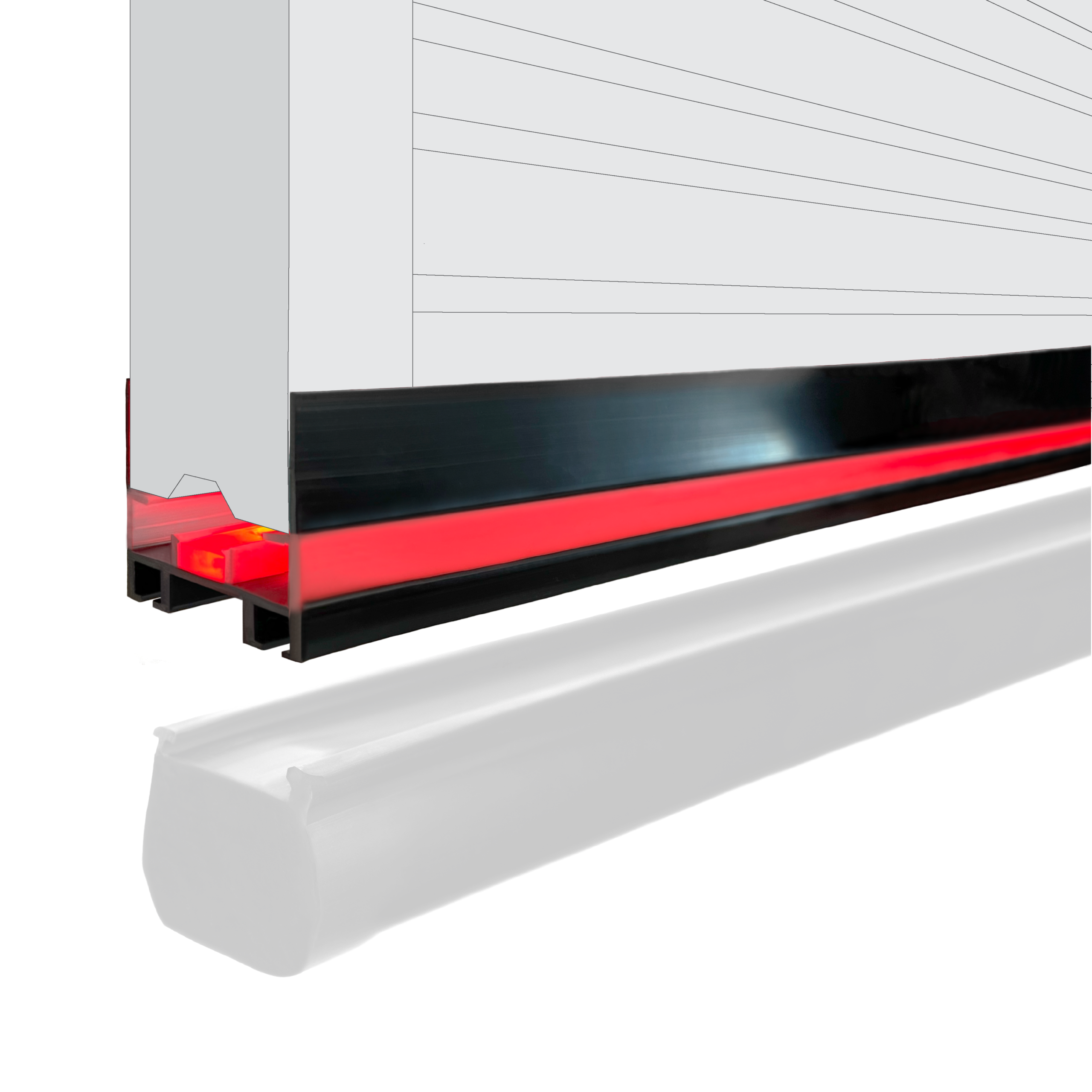

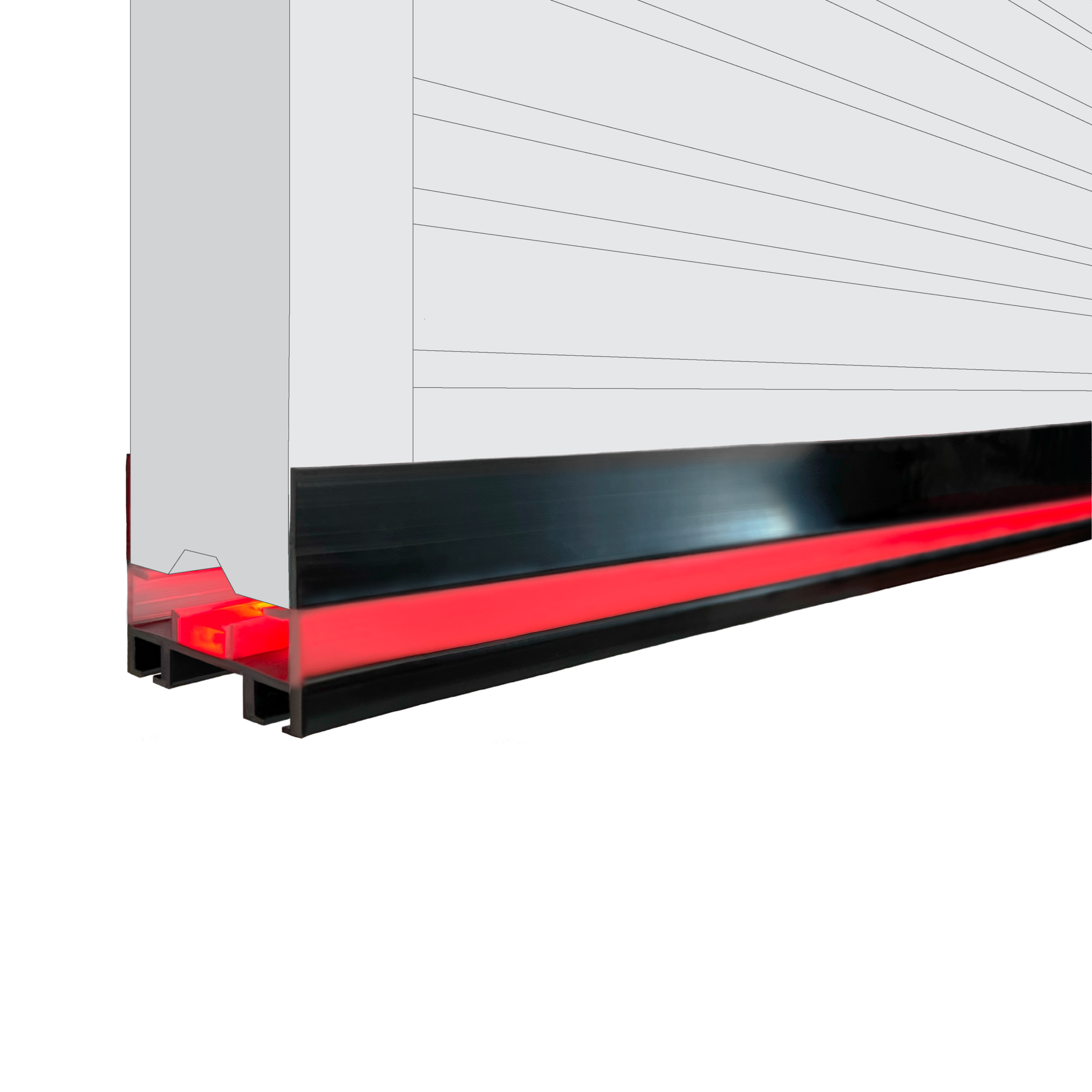

A rigid PVC channel with a co‑extruded, UV‑resistant diffusion window blends individual LEDs into a smooth, continuous bar of light visible from both sides of the door opening. When paired with a sensing edge, Aries combines visual door‑status indication with touch‑sensitive obstruction detection in a streamlined retrofit.

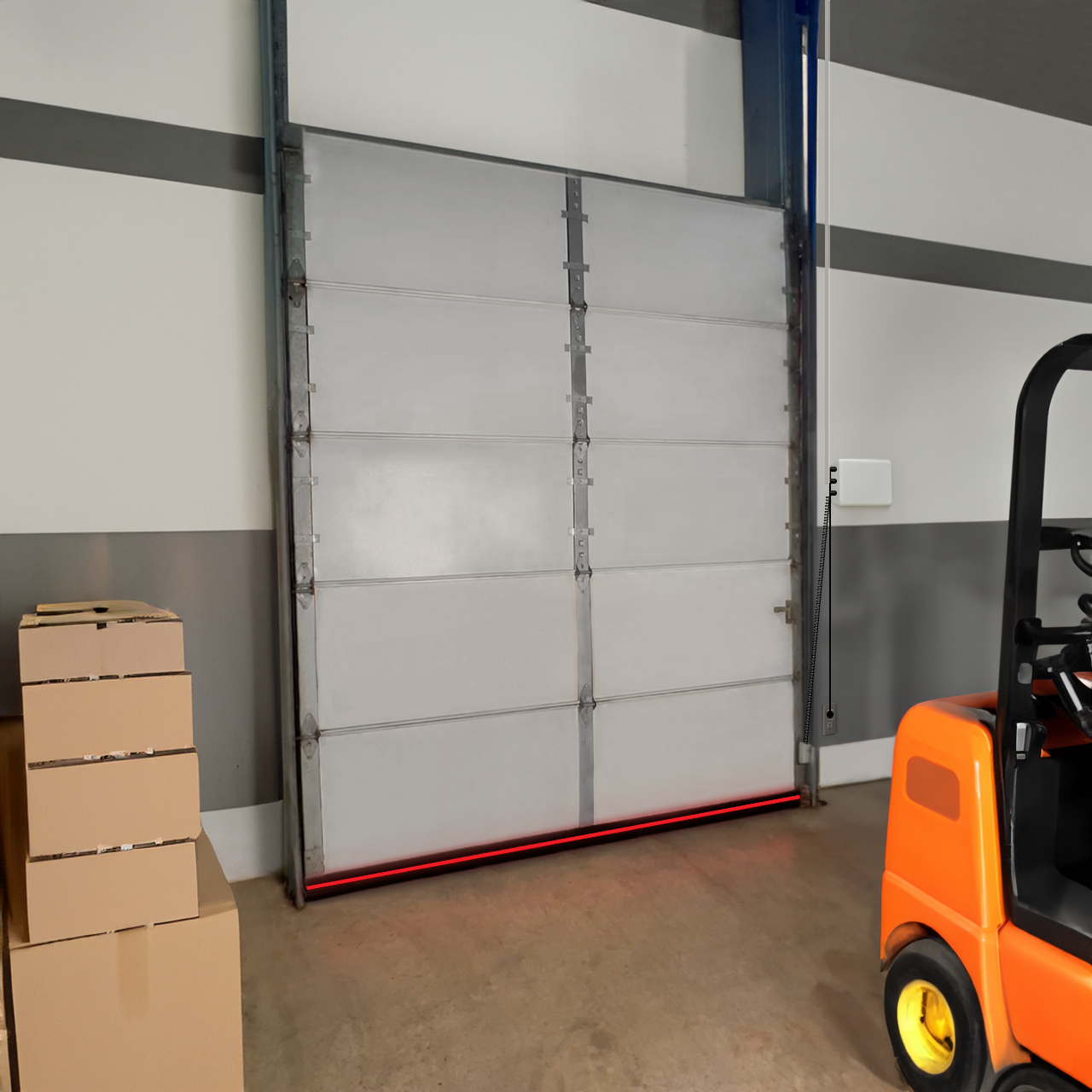

The result is improved awareness of door movement with consistent edge response or weather seal functionality—well suited for high‑traffic commercial environments.

Applications

Standard and high-performance 1‑3/4-in. to 2-in. commercial motorized sectional doors

Note: Not recommended for high-speed doors.

Features

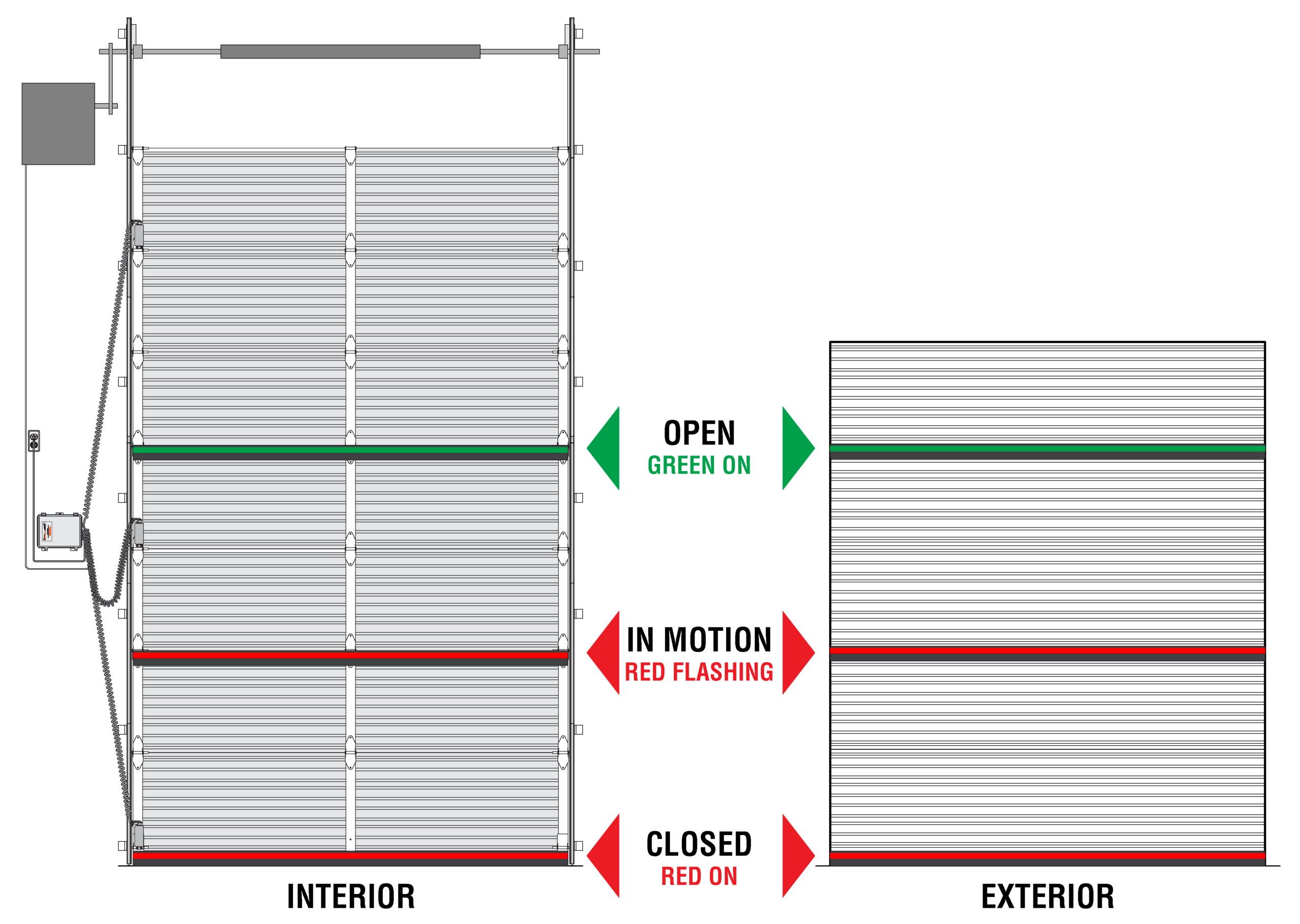

• Dual‑Sided Always‑On LEDs: Provides visibility on both the interior and exterior of the door opening
• Diffused Light Window: Transforms individual LEDs into a solid, uniform bar of light

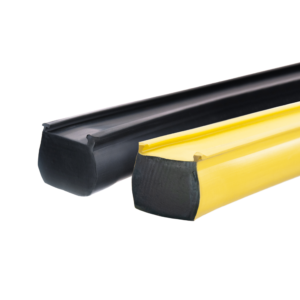

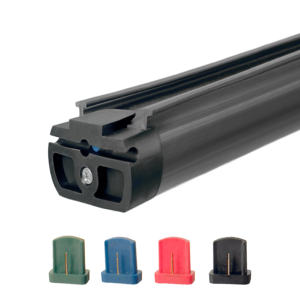

• Integrated Leading‑Edge Channel: Accepts ME123 or CPT215 sensing edges, or LS‑0107 weather seal (sold separately)
• UV‑Resistant PVC Channel: Ensures smooth, consistent light output

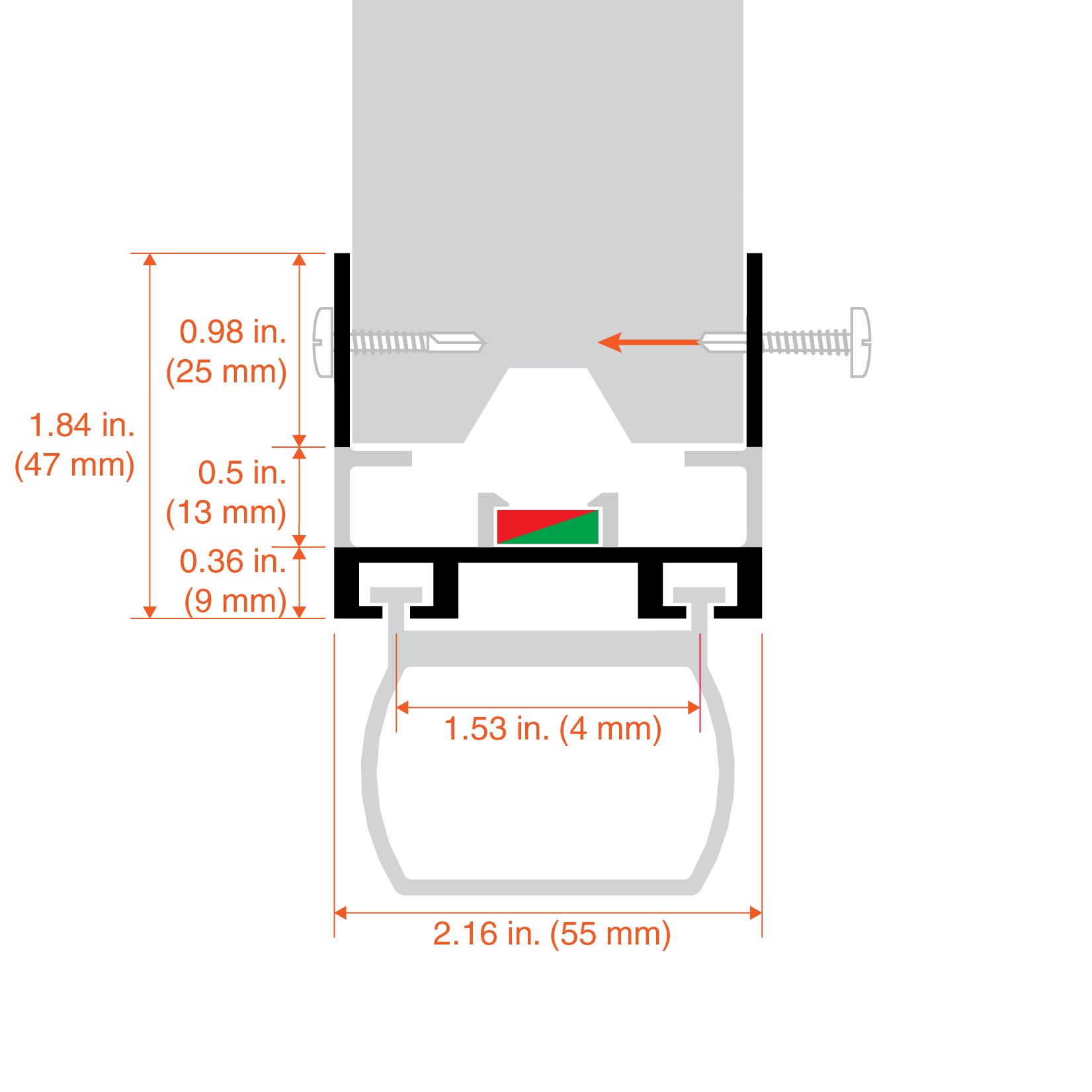

• Door Compatibility: Fits 1‑3/4-in. to 2-in. thick sectional doors
• Retrofit‑Ready Design: Ideal for high‑traffic commercial environments
• 2-year warranty
